MCT8329A1IREER - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 60-V sensorless trapezoidal control three-phase BLDC gate driver

Download MCT8329A1IREER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

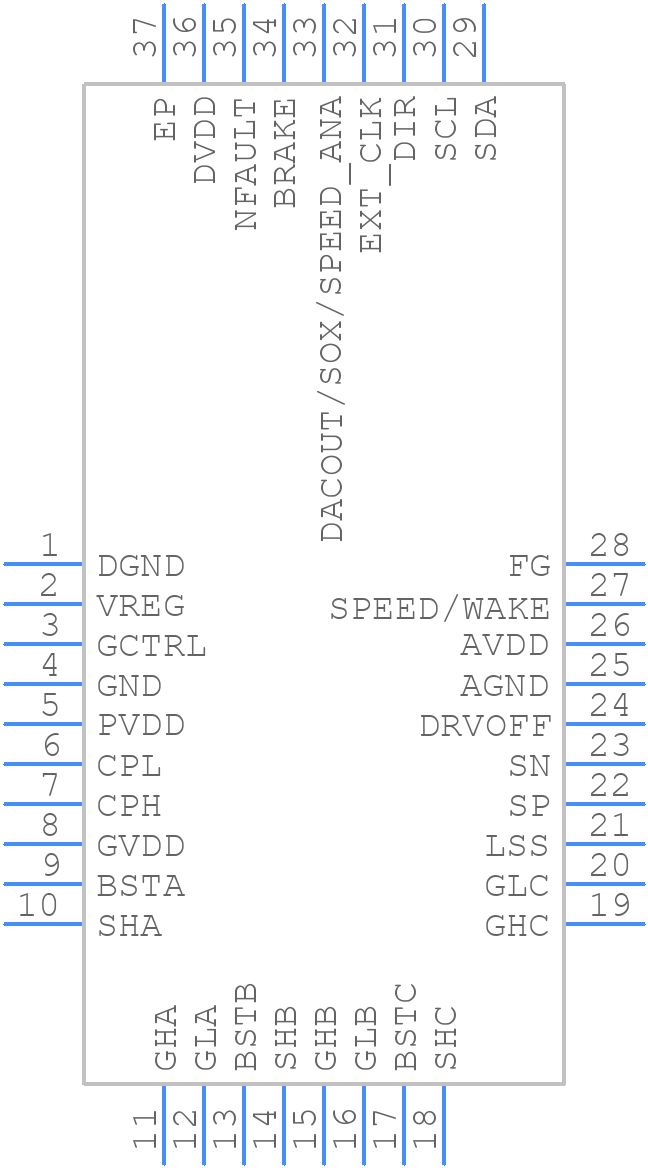

MCT8329A1IREER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
MCT8329A1IREER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MCT8329A1IREER
click to zoom
3D Models
MCT8329A1IREER - Texas Instruments - 3D model - Quad Flat No-Lead - MCT8329A1IREER
click to zoom

MCT8329A1IREER Details

  • Manufacturer Part Number:

    MCT8329A1IREER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-XQCC-N36

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    -0.01 A

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC36(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30
