MP6510DM-LF-Z - Monolithic Power Systems (MPS)

Description: 4.5V-to-16V Operating Voltage  Integrated Power MOSFETs (HS: 370mΩ; LS: 230mΩ)  Maximum Output Current 1.2A  Low Quiescent Current (Not including Hall Sensor) of 1.4mA  Speed Control via Input Voltage or PWM Signal  Programmable Minimum Speed  Rotational Speed Indicator  Locked-Rotor Indicator  Locked-Rotor Protection and Automatic Recovery  Thermal Protection and Automatic Recovery  Built-in Input OVP and Automatic Recovery  Hall Bias Voltage(1.2V) Integrated;  Available in TSSO

Download MP6510DM-LF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

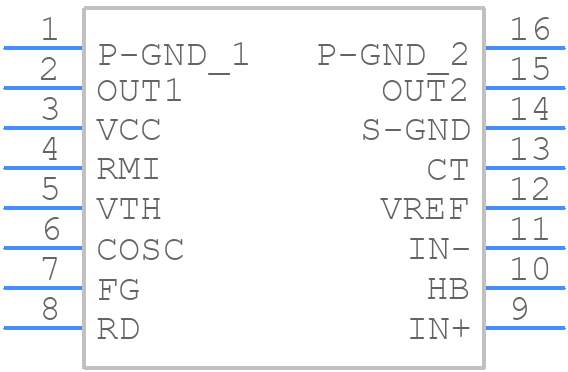

MP6510DM-LF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6510DM-LF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16*
click to zoom
3D Models
MP6510DM-LF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - TSSOP16*
click to zoom

MP6510DM-LF-Z Details

  • Manufacturer Part Number:

    MP6510DM-LF-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8.05

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

MP6510DM-LF-Z Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MP6510DM-LF-Z. Ensure that the input and output capacitors are placed close to the IC, and the high-current paths are short and wide. Use a solid ground plane and avoid routing high-frequency signals under the IC. Refer to the application note AN-114 for more detailed guidelines.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. The datasheet recommends X5R or X7R ceramic capacitors with a minimum capacitance of 10uF for the input and 22uF for the output.
  • The MP6510DM-LF-Z is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
  • The output voltage can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, the MP6510DM-LF-Z has a built-in voltage margining feature that allows for ±5% output voltage adjustment.
  • The MP6510DM-LF-Z has a minimum input voltage requirement of 2.5V for startup. However, it's recommended to ensure a minimum input voltage of 2.7V to account for voltage drops and ensure reliable startup.
