Description:VDD core supply voltage can be set to 3.3 V, 2.5 V or 1.8 V; VDDO output supply voltage can be set to 3.3 V, 2.5 V, or 1.8 V, with the constraint that VDD >/= VDDO; 250 MHz Maximum Clock Frequency; Accepts LVCMOS, LVTTL Clock Inputs; 12 LVCMOS Clock Outputs; 150 ps Max. Skew Between Outputs; Temp. Range 40C to +85C; 32pin LQFP and QFN Packages; Synchronous Clock Enable
A good PCB layout for the NB3V8312CMNR4G involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper power-up and power-down of the NB3V8312CMNR4G, it's recommended to follow a controlled power-up sequence, where the input voltage is ramped up slowly (e.g., 10-20 ms) to prevent inrush currents. During power-down, the input voltage should be ramped down slowly as well to prevent damage to the device.
The NB3V8312CMNR4G has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from other heat sources. The device's thermal resistance (θJA) is approximately 45°C/W.
To troubleshoot issues with the NB3V8312CMNR4G, start by verifying the input voltage and current, and checking for any signs of overheating. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance.
Yes, the NB3V8312CMNR4G is a high-frequency device and can be susceptible to electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the device away from other noise sources, and use EMI filters or shielding on the input and output lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3V8312CMNR4G Overview

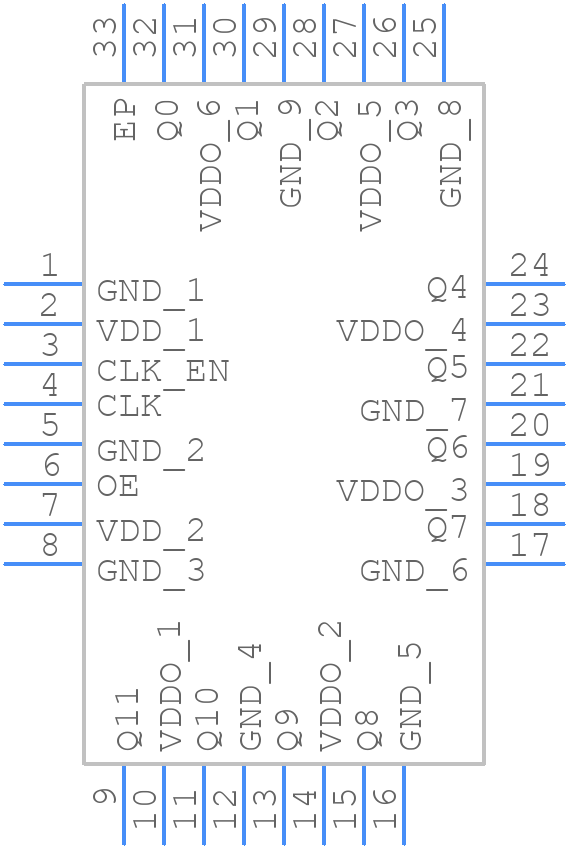

Use the download button to access the NB3V8312CMNR4G schematic symbol, PCB footprint, and 3D model.
