Description:Fully supports IEEE 802.3af specifications - Allows for up to 15W of power - Certified interoperability between PoE devices; 500 mA operational current limit; Industrial temperature range 40°C to 85°C with full operation up to 125°C junction temperature; Vertical N-Channel DMOS pass switch offers the robustness of discrete MOSFETs
A good PCB layout for the NCP1091DG should prioritize thermal management, with a solid ground plane and thermal vias to dissipate heat. The input and output capacitors should be placed close to the IC, and the feedback network should be routed to minimize noise and parasitic inductance.
The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, while the output capacitor should be a low-ESR electrolytic capacitor with a value between 22uF to 47uF. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
The NCP1091DG can operate in an ambient temperature range of -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. The device's power dissipation and thermal management should be carefully considered to ensure reliable operation.
First, check the input voltage and ensure it's within the recommended range. Verify that the feedback network is properly connected and that the output voltage is not overloaded. Check for any signs of overheating, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further troubleshooting guidance.
Yes, the NCP1091DG is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive grade devices and is designed to meet the requirements of high-reliability applications. However, additional testing and validation may be required to ensure compliance with specific industry standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1091DG Overview

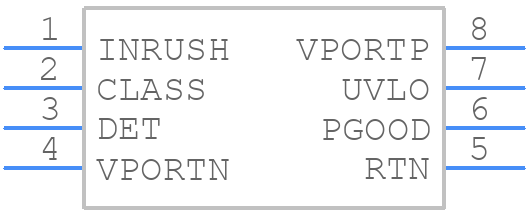

Use the download button to access the NCP1091DG schematic symbol, PCB footprint, and 3D model.
