Part Image

NCP1091DRG - onsemi

Description: Fully supports IEEE 802.3af specifications - Allows for up to 15W of power - Certified interoperability between PoE devices; 500 mA operational current limit; Industrial temperature range 40°C to 85°C with full operation up to 125°C junction temperature; Vertical N-Channel DMOS pass switch offers the robustness of discrete MOSFETs

Download NCP1091DRG Model

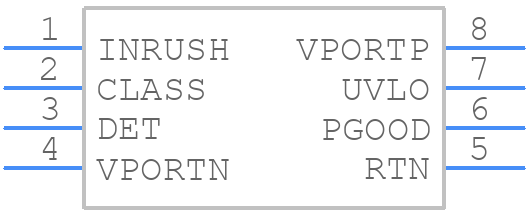

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1091DRG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom
3D Models
NCP1091DRG - onsemi  - 3D model - Small Outline Packages - SOIC-8 CASE 751AZ ISSUE B
click to zoom

NCP1091DRG Details

  • Manufacturer Part Number:

    NCP1091DRG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    LEAD FREE, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751AZ

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

NCP1091DRG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1091DRG should prioritize thermal management, with a solid ground plane and thermal vias to dissipate heat. The input and output capacitors should be placed close to the IC, and the feedback network should be routed to minimize noise and parasitic inductance.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, while the output capacitor should be a low-ESR electrolytic capacitor with a value between 22uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The NCP1091DRG can operate in ambient temperatures up to 85°C, but the junction temperature should not exceed 150°C. The device should be derated for temperatures above 70°C to ensure reliable operation.
  • To ensure stability, the NCP1091DRG requires a minimum output capacitance of 22uF, and the feedback network should be properly compensated. The device should also be operated within the recommended input voltage range, and the input and output voltages should be properly decoupled.
  • Yes, the NCP1091DRG can be used in a synchronous rectification configuration, but it requires an external FET driver and a Schottky diode. The device should be properly configured and compensated to ensure stable operation and minimize losses.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1091DRG Overview

Use the download button to access the NCP1091DRG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10, or try a keyword search, such as Power Management Circuits

Parts related to NCP1091DRG

Showing 0 results

NCP1091DRG Alternates

Showing results

Image Part Number Model
Part Image NCP1091DG onsemi

Power Management Circuit
