A good PCB layout for NCP347MTAFTBG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
To ensure stability, ensure that the output capacitor is within the recommended range, the input voltage is within the specified range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
The maximum ambient temperature that NCP347MTAFTBG can operate in is 125°C, but the device can be derated for higher temperatures. Consult the datasheet for derating information.
Yes, NCP347MTAFTBG is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with NCP347MTAFTBG, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is operated within its specified parameters. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP347MTAFTBG Overview

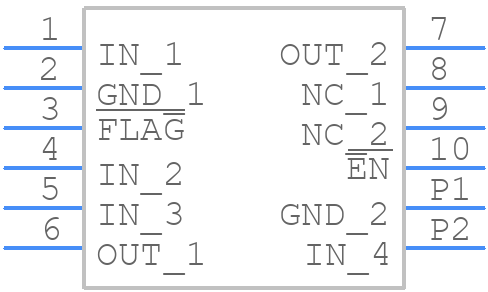

Use the download button to access the NCP347MTAFTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP34,
or try a keyword search, such as Power Management Circuits
