NXH350N100H4Q2F2P1G - onsemi

Description: Module with low thermal impedance baseplate; Solder and press-fit options; 1000V low VCE(sat) IGBTs and 1200V SiC diode optimized combination for DC-AC conversion

Download NXH350N100H4Q2F2P1G Model

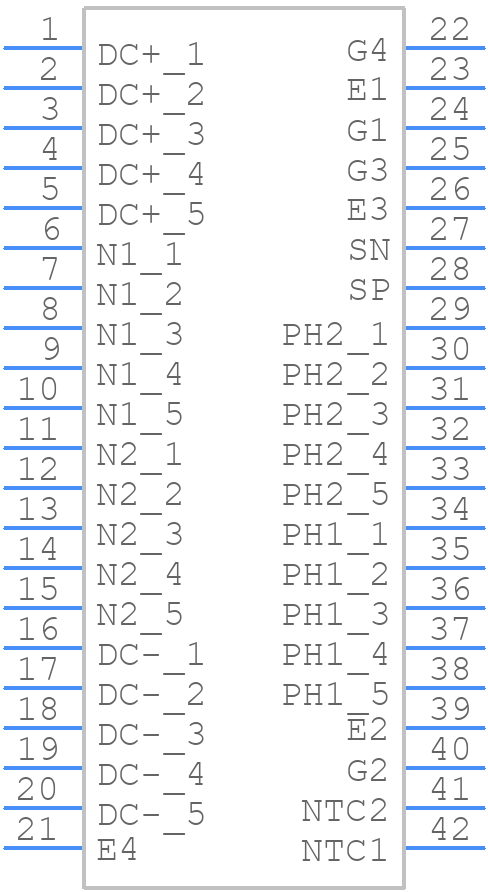

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

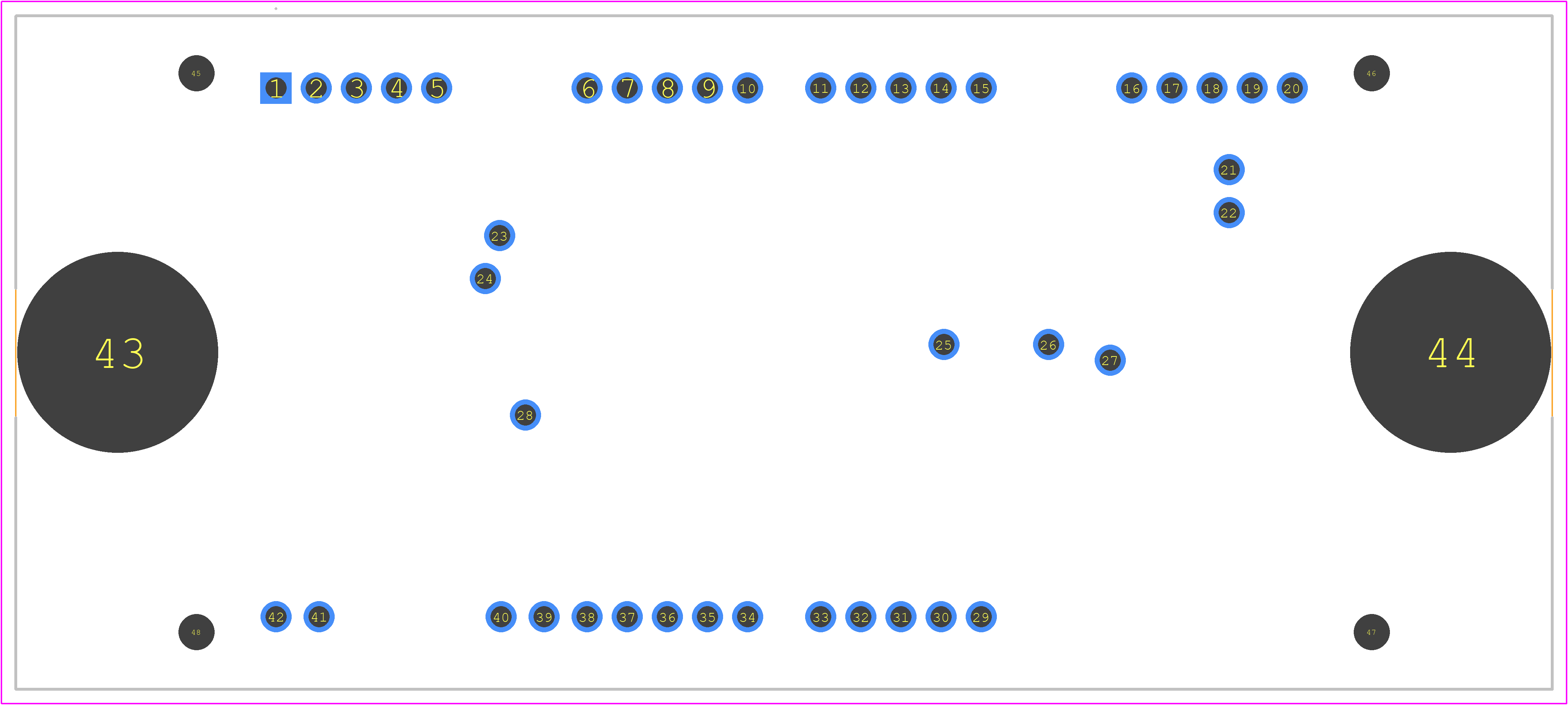

NXH350N100H4Q2F2P1G - onsemi PCB footprint - Other - Other - PIM42, 93.00x47.00x12.00 CASE 180BH ISSUE A
click to zoom
3D Models
NXH350N100H4Q2F2P1G - onsemi  - 3D model - Other - PIM42, 93.00x47.00x12.00 CASE 180BH ISSUE A
click to zoom

NXH350N100H4Q2F2P1G Details

  • Manufacturer Part Number:

    NXH350N100H4Q2F2P1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Q2

  • Manufacturer Package Code:

    180BH

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-07-30

  • Manufacturer:

    onsemi

NXH350N100H4Q2F2P1G Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the NXH350N100H4Q2F2P1G involve using a multi-layer board with a solid ground plane, placing the device near the center of the board, and using thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal performance.
  • To ensure reliable operation, it's essential to follow the recommended operating conditions, use proper voltage and current limiting, and implement overvoltage and overcurrent protection circuits. Additionally, using a suitable gate driver and ensuring proper PCB layout and decoupling can help minimize the risk of latch-up or damage.
  • The internal diode in the NXH350N100H4Q2F2P1G can affect the overall system design and performance, particularly in terms of voltage and current ratings. It's essential to consider the diode's characteristics when designing the system, including the voltage and current ratings, to ensure reliable operation and prevent damage.
  • When selecting a gate driver for the NXH350N100H4Q2F2P1G, consider the device's gate charge, voltage rating, and current rating. The gate driver should be able to provide the required voltage and current to ensure proper switching, and it should also be compatible with the device's input capacitance and resistance.
  • The NXH350N100H4Q2F2P1G's package has a thermal resistance of around 1.5°C/W. To ensure effective heat dissipation, use a heat sink or thermal pad, and follow proper PCB layout and thermal management guidelines. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink or thermal pad.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NXH350N100H4Q2F2P1G Overview

Use the download button to access the NXH350N100H4Q2F2P1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH35, or try a keyword search, such as IGBTs
