Onsemi provides a reference design guide for the NXH800A100L4Q2F2P1G, which includes recommended PCB layout and thermal management guidelines. It's essential to follow these guidelines to ensure optimal performance, reliability, and thermal dissipation.
The selection of input and output capacitors depends on the specific application requirements, such as voltage ripple, current rating, and ESR. Onsemi recommends using capacitors with low ESR and high ripple current ratings. A good starting point is to use capacitors with a voltage rating of 1.5 to 2 times the input voltage and a capacitance value of 10-22uF for the input capacitor and 22-47uF for the output capacitor.
The NXH800A100L4Q2F2P1G has a maximum operating temperature range of -40°C to 150°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
To ensure EMC, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Onsemi also recommends following the guidelines outlined in the CISPR 25 standard for automotive EMC.
Onsemi recommends using a reflow soldering process with a peak temperature of 260°C and a dwell time of 20-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NXH800A100L4Q2F2P1G Overview

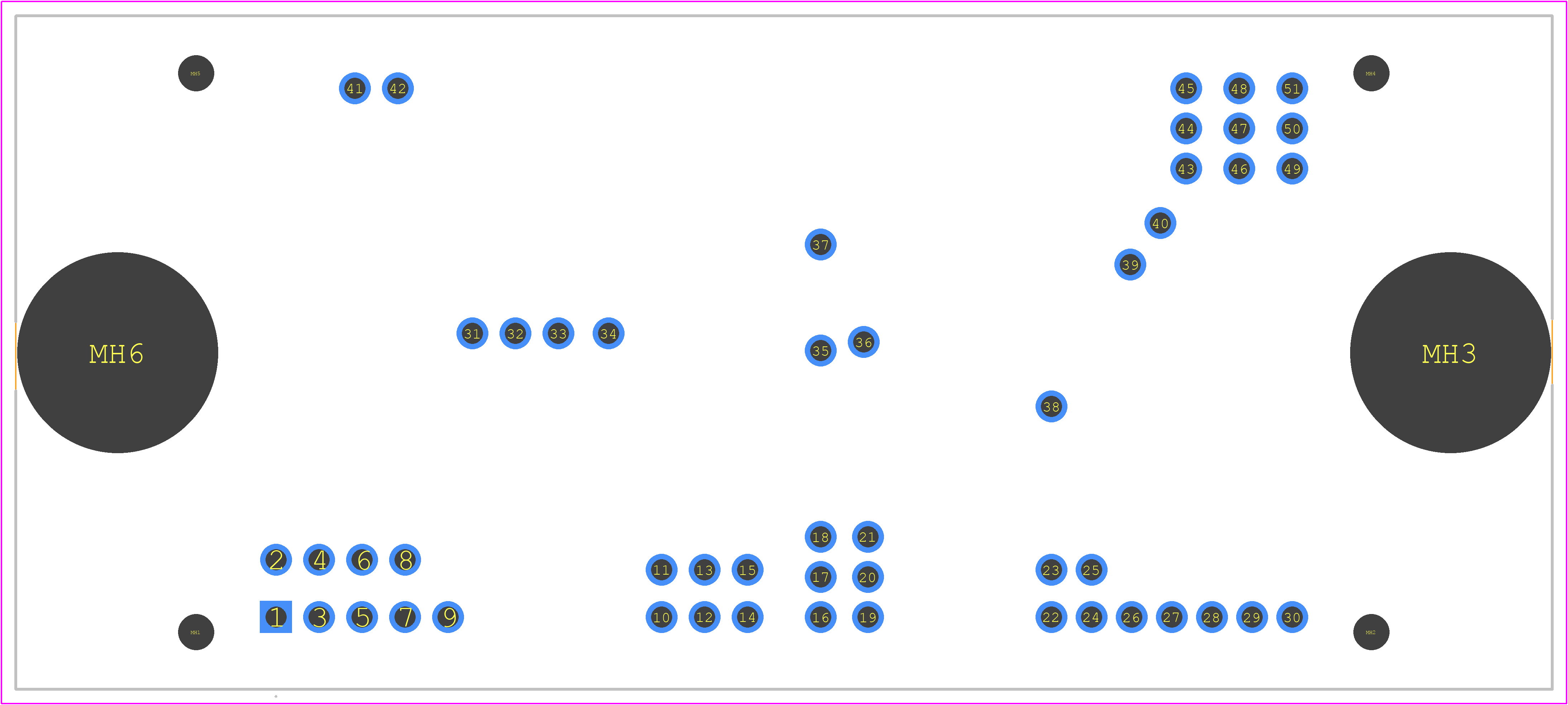

Use the download button to access the NXH800A100L4Q2F2P1G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NXH80,
or try a keyword search, such as IGBTs
