Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLVAE67) and layout files (O917A133TRGZRQ1_PCB_Layout.zip). It's essential to follow these guidelines to ensure optimal performance, reduce thermal resistance, and prevent overheating.
The selection of input and output capacitors depends on the specific application, output voltage, and current requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. Refer to the datasheet and application notes for more detailed guidance.
The O917A133TRGZRQ1 is rated for operation up to 105°C ambient temperature. However, the device's performance, including efficiency and output voltage regulation, may degrade at higher temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at elevated temperatures.
The O917A133TRGZRQ1 has built-in overcurrent protection, but it's recommended to add external protection circuits to ensure reliable operation. TI provides guidance on implementing overcurrent protection and short-circuit protection in their application notes and design guides.
To accurately characterize the O917A133TRGZRQ1's performance, TI recommends using high-quality test and measurement equipment, such as oscilloscopes, signal generators, and precision multimeters. Refer to the datasheet and application notes for specific guidance on measurement techniques and equipment requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
O917A133TRGZRQ1 Overview

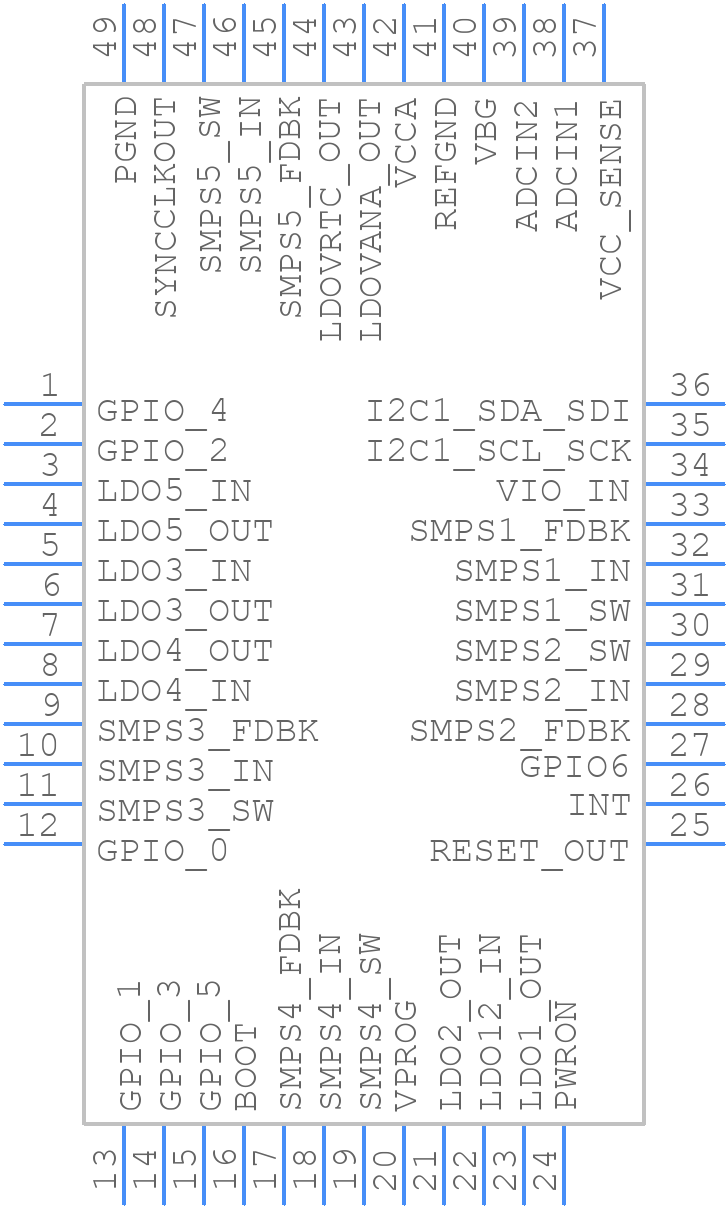

Use the download button to access the O917A133TRGZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like O917A,
or try a keyword search, such as Power Management Circuits
