A good PCB layout for the OPA134UA/2K5E4 involves keeping the input and output traces short and away from each other, using a ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a symmetrical layout to minimize thermal gradients and noise.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements of your application. A higher gain resistor value will result in higher gain but may also increase noise and reduce bandwidth. TI provides a gain resistor calculator tool to help with selection. It's also important to consider the resistor's tolerance, temperature coefficient, and parasitic capacitance.
The maximum power dissipation of the OPA134UA/2K5E4 is 670mW. To ensure you don't exceed it, calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. You can use TI's power dissipation calculator tool to help with this. Additionally, consider using a heat sink or reducing the supply voltage to minimize power dissipation.
To protect the OPA134UA/2K5E4 from EMI and RFI, use shielding, filtering, and grounding techniques. Place the op-amp in a shielded enclosure, use ferrite beads or chokes on the input and output lines, and ensure a low-impedance ground connection. Additionally, consider using a common-mode filter or a shielded cable to reduce electromagnetic radiation.
Operating the OPA134UA/2K5E4 at high temperatures can reduce its reliability and lifespan. The device is rated for operation up to 125°C, but it's recommended to keep the junction temperature below 100°C to ensure reliability. Use a heat sink, reduce the power dissipation, and ensure good airflow to keep the temperature within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA134UA/2K5E4 Overview

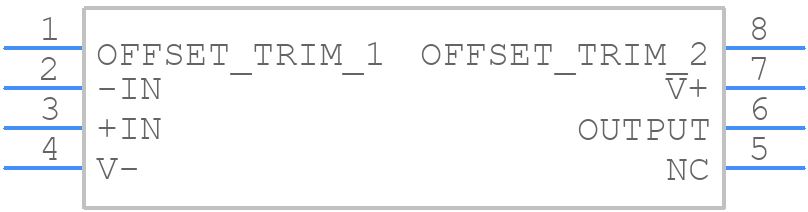

Use the download button to access the OPA134UA/2K5E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA13,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
