Texas Instruments provides a recommended PCB layout in the OPA2369 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce parasitic inductance, and ensure optimal performance.
The output capacitor should be chosen based on the desired closed-loop bandwidth, output impedance, and stability requirements. A general rule of thumb is to use a capacitor with a value between 10nF to 100nF, and a voltage rating that exceeds the maximum output voltage of the op-amp. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to ensure stability.
Yes, the OPA2369AIDCNRG4 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal, and that the output impedance is low enough to drive the desired load. Additionally, the op-amp's bandwidth and slew rate should be sufficient for the desired frequency range.
To minimize EMI and RFI, use proper shielding, grounding, and layout techniques. Keep the op-amp and its associated components away from noise sources, and use a low-pass filter or a ferrite bead to filter out high-frequency noise. Additionally, use a shielded cable or a twisted pair for input and output connections.
The maximum power dissipation of the OPA2369AIDCNRG4 is dependent on the ambient temperature and the package type. For the DFN package, the maximum power dissipation is approximately 1.4W at 25°C. However, it's essential to calculate the power dissipation based on the specific application and ensure that the op-amp is operated within its recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2369AIDCNRG4 Overview

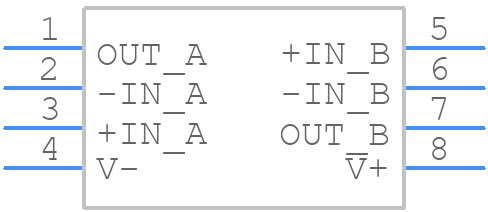

Use the download button to access the OPA2369AIDCNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
