Texas Instruments provides a recommended PCB layout in the OPA2369 datasheet, which includes guidelines for component placement, trace routing, and grounding. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal performance.
The choice of input and output capacitors depends on the specific application and frequency range. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are suitable for most applications. For high-frequency applications, film capacitors or low-ESR ceramic capacitors may be required. Consult the datasheet and application notes for more information.
The maximum power dissipation of OPA2369AIDCNTG4 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a formula to calculate the maximum power dissipation based on the junction temperature, ambient temperature, and thermal resistance. Typically, the maximum power dissipation is around 1.4W at 25°C ambient temperature.
OPA2369AIDCNTG4 is specified to operate from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for more information on temperature-related specifications and derating factors.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components as needed. Additionally, consider using a shielded enclosure and following relevant EMC standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2369AIDCNTG4 Overview

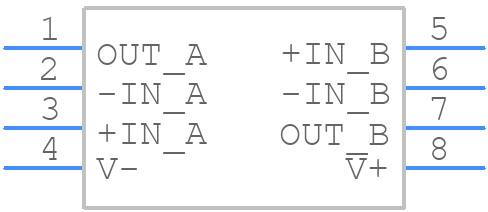

Use the download button to access the OPA2369AIDCNTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA23,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
