A good PCB layout for OPA2822E/2K5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. TI provides a recommended layout in the datasheet and application notes.
The choice of gain resistors depends on the desired gain, bandwidth, and noise requirements. TI provides a gain resistor calculator tool and application notes to help with the selection. Additionally, the datasheet provides guidelines for selecting the optimal gain resistors.
The maximum power dissipation of OPA2822E/2K5 is dependent on the ambient temperature and the thermal resistance of the package. The datasheet provides a power dissipation calculator and thermal resistance values to help determine the maximum power dissipation for a given application.
Yes, OPA2822E/2K5 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is low enough to drive the load. TI provides application notes and examples for using OPA2822E/2K5 as a unity-gain buffer.
To handle EMI and RFI, use proper shielding, grounding, and layout techniques. TI recommends using a shielded enclosure, keeping the OPA2822E/2K5 away from noise sources, and using EMI filters or ferrite beads on the input and output lines. Additionally, the datasheet provides guidelines for reducing EMI and RFI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2822E/2K5 Overview

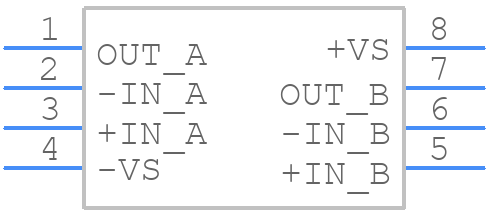

Use the download button to access the OPA2822E/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
