A good PCB layout for OPA2822U/2K5 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the power pins. Additionally, it's recommended to use a low-ESR capacitor for the bypass capacitor (e.g., 10nF to 100nF) and to keep the analog and digital grounds separate.
The choice of gain resistors depends on the desired gain, input impedance, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet (e.g., 1kΩ to 10kΩ). For higher gains, use lower resistor values, and for lower gains, use higher resistor values. Also, consider using metal film or thin film resistors for better noise performance.
The maximum power dissipation of OPA2822U/2K5 is 500mW. However, this can be limited by the thermal resistance of the package and the ambient temperature. It's essential to ensure that the device operates within the recommended operating temperature range (-40°C to 125°C) and to provide adequate heat sinking if necessary.
Yes, OPA2822U/2K5 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance to avoid signal attenuation. Additionally, consider using a low-ESR capacitor for the bypass capacitor to minimize noise and oscillations.
To handle EMI and RFI, use proper shielding, grounding, and layout techniques. Keep the OPA2822U/2K5 away from noise sources, use twisted pair or shielded cables, and consider using EMI filters or common-mode chokes. Additionally, ensure that the device is properly decoupled and that the power supply is well-regulated.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2822U/2K5 Overview

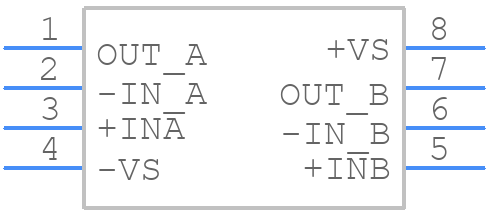

Use the download button to access the OPA2822U/2K5 schematic symbol, PCB footprint, and 3D model.
