OPA2832IDR - Texas Instruments

Description: Video Amp 2 Voltage Feedback 8-SOIC

Download OPA2832IDR Model

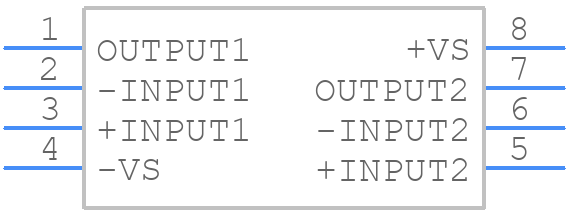

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA2832IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
OPA2832IDR - Texas Instruments  - 3D model - Small Outline Packages - D0008A
click to zoom

OPA2832IDR Details

  • Manufacturer Part Number:

    OPA2832IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    13 µA

  • Bandwidth (3dB)-Nom:

    250 MHz

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Common-mode Reject Ratio-Min:

    72 dB

  • Common-mode Reject Ratio-Nom:

    72 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    1.5 µA

  • Input Offset Voltage-Max:

    7500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.905 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    2

  • Neg Supply Voltage Limit-Max:

    -5.5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    100 V/us

  • Slew Rate-Nom:

    300 V/us

  • Supply Current-Max:

    4.7 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    250000

  • Wideband:

    YES

  • Width:

    3.895 mm

OPA2832IDR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended layout and PCB design guide in their application note SLAA523, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The choice of output filter depends on the specific application and frequency range of interest. A general guideline is to use a low-pass filter with a cutoff frequency below the unity-gain bandwidth of the op-amp (around 100 MHz for the OPA2832IDR). A simple RC filter or a more complex active filter can be used, depending on the required level of noise reduction and signal attenuation.
  • The OPA2832IDR can drive capacitive loads up to 1 nF without oscillating, but this value can be increased by adding a series resistor (Rs) to the output. The recommended value of Rs is around 10-20 ohms, and the maximum capacitive load can be calculated using the formula: CL(max) = 1 / (2 * π * Rs * f Unity-Gain).
  • To ensure stability, it's essential to follow proper layout and PCB design guidelines, use a stable voltage supply, and choose the right output filter. Additionally, the feedback loop should be designed to have a phase margin of at least 45 degrees and a gain margin of at least 10 dB. The OPA2832IDR datasheet provides a stability analysis and design guide to help with this process.
  • Texas Instruments recommends using a 10 uF ceramic capacitor in parallel with a 1 uF ceramic capacitor, both connected between the power supply pins (V+ and V-) and ground. This provides adequate decoupling and bypassing for the op-amp, reducing noise and ensuring stable operation.
