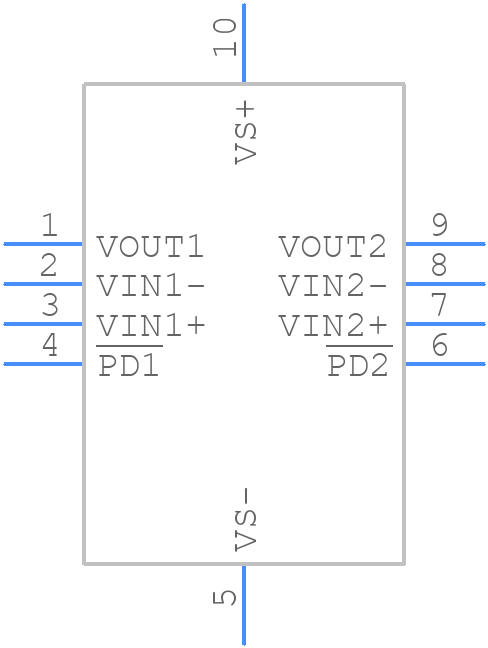

OPA2835IRMCR - Texas Instruments

OPA2835IRMCR Details

• Manufacturer Part Number:

  OPA2835IRMCR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.53 µA

• Bias Current-Max (IIB) @25C:

  0.4 µA

• Common-mode Reject Ratio-Min:

  91 dB

• Common-mode Reject Ratio-Nom:

  113 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.1 µA

• Input Offset Voltage-Max:

  500 µV

• JESD-30 Code:

  S-PQCC-N10

• JESD-609 Code:

  e4

• Length:

  2 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  YES

• Moisture Sensitivity Level:

  2

• Number of Functions:

  2

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.6 mm

• Slew Rate-Nom:

  160 V/us

• Supply Current-Max:

  0.7 mA

• Supply Voltage Limit-Max:

  5.5 V

• Supply Voltage-Nom (Vsup):

  2.7 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Unity Gain BW-Nom:

  30000

• Voltage Gain-Min:

  100000

• Wideband:

  NO

• Width:

  2 mm
