Texas Instruments recommends a layout with a symmetrical, star-grounded configuration, with the op-amp inputs and outputs routed away from each other and from the power supply lines. A solid ground plane and decoupling capacitors close to the device are also recommended.
The gain resistors should be chosen based on the desired gain, bandwidth, and noise requirements. A good starting point is to use the gain resistor values recommended in the datasheet, and then adjust them based on simulation and measurement results. It's also important to consider the resistor tolerance and temperature coefficient.
The maximum power dissipation of OPA2889IDR is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C, but this can be derated to 0.7W at 85°C. It's essential to ensure that the device is properly heat-sinked and that the power supply is designed to handle the maximum expected power dissipation.
Yes, OPA2889IDR can be used in a single-supply configuration, but it requires careful consideration of the input common-mode range and the output voltage swing. The device can operate from a single supply voltage as low as 2.7V, but the input common-mode range is limited to within 1V of the supply rails. Additionally, the output voltage swing is reduced in single-supply operation, so it's essential to ensure that the output voltage stays within the recommended range.
To protect OPA2889IDR from EMI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter or ferrite bead on the power supply lines. Additionally, the PCB layout should be designed to minimize loop areas and keep the signal traces away from the power supply lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA2889IDR Overview

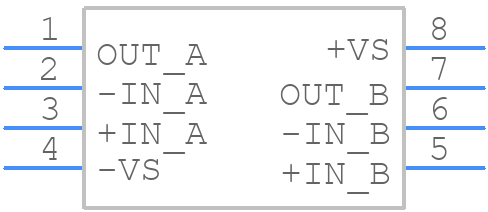

Use the download button to access the OPA2889IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like OPA28,
or try a keyword search, such as Operational Amplifiers
