SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Power:
YES
Programmable Power:
NO
Qualification Status:
Not Qualified
Seated Height-Max:
1.45 mm
Slew Rate-Min:
1100 V/us
Slew Rate-Nom:
4300 V/us
Subcategory:
Operational Amplifier
Supply Current-Max:
13.3 mA
Supply Voltage Limit-Max:
6.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Unity Gain BW-Nom:
1700000
Wideband:
YES
Width:
1.6 mm
OPA695IDBVTG4 Frequently Asked Questions (FAQs)
Texas Instruments recommends a layout that minimizes parasitic inductance and capacitance, keeps the input and output traces short and separate, and uses a solid ground plane to reduce noise and electromagnetic interference (EMI). A 4-layer PCB with a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended compensation network, use a low-ESR capacitor at the output, and avoid capacitive loads. Also, ensure that the gain and phase margins are sufficient by analyzing the loop gain and phase response of the circuit.
The maximum power dissipation of OPA695IDBVTG4 is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, OPA695IDBVTG4 can operate in high-temperature environments, but its performance and reliability may degrade. The device is specified to operate up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Above 125°C, the device's bandwidth, slew rate, and noise performance may degrade.
To protect OPA695IDBVTG4 from ESD, use anti-static packaging and handling procedures, and ensure that the device is properly grounded during assembly. Also, use voltage clamps or transient voltage suppressors to protect against overvoltage and overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
OPA695IDBVTG4 Overview

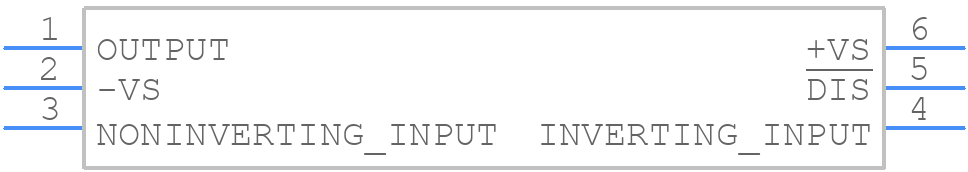

Use the download button to access the OPA695IDBVTG4 schematic symbol, PCB footprint, and 3D model.
