OPA855IDSGR - Texas Instruments

Description: High Speed Operational Amplifiers 8 GHz Gain Bandwidth Product, Decompensated Transimpedance Amplifier with Bipolar Input 8-WSON -40 to 125

Download OPA855IDSGR Model

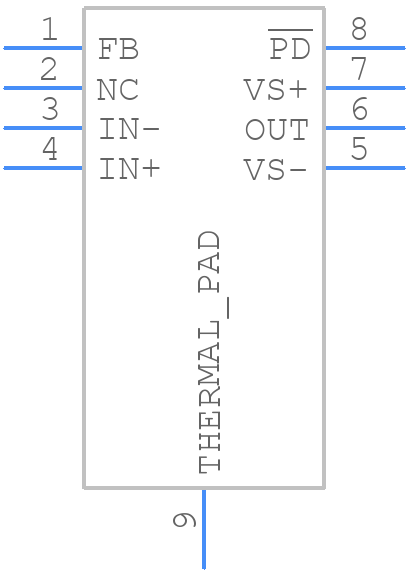

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
OPA855IDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON(DSG)
click to zoom
3D Models
OPA855IDSGR - Texas Instruments  - 3D model - Small Outline No-lead - WSON(DSG)
click to zoom

OPA855IDSGR Details

  • Manufacturer Part Number:

    OPA855IDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    5 µA

  • Bias Current-Max (IIB) @25C:

    5 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1500 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    2750 V/us

  • Supply Current-Max:

    19.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    8000000

  • Voltage Gain-Min:

    3162.278

  • Wideband:

    YES

  • Width:

    2 mm

OPA855IDSGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the OPA855IDSGR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the power supply bypassing.
  • The choice of gain resistors for the OPA855IDSGR depends on the desired gain and bandwidth. A higher gain requires smaller resistors, but may compromise bandwidth. A good starting point is to use resistors in the range of 1 kΩ to 10 kΩ. It's also important to consider the resistor's tolerance and temperature coefficient.
  • The OPA855IDSGR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, especially in high-power or high-temperature applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be operated within the recommended temperature range.
  • To protect the OPA855IDSGR from EMI and RFI, use shielding, filtering, and grounding techniques. Use a metal enclosure or shielded cables to prevent electromagnetic radiation. Add filters, such as ferrite beads or RC filters, to the input and output lines to reduce high-frequency noise. Ensure good grounding practices, including a solid ground plane and low-impedance connections.
  • In high-impedance circuits, the OPA855IDSGR's input impedance can affect the circuit's overall impedance. To optimize the design, use a buffer stage or a voltage follower to reduce the input impedance. Additionally, consider using a lower-gain configuration or adding a feedback resistor to improve stability.
