OPA890IDBVR - Texas Instruments

Description: Low Power, Wideband, Voltage Feedback Operational Amplifier with Disable

Download OPA890IDBVR Model

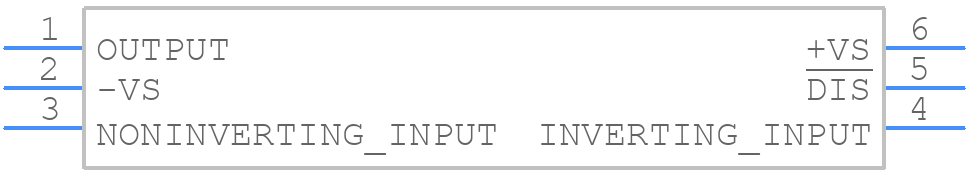

Schematic
