Texas Instruments provides a recommended layout and routing guide in their application note SLAA523, which includes guidelines for PCB design, component placement, and signal routing to minimize noise and ensure optimal performance.
Optimizing the ADC's performance requires understanding the application's specific requirements, such as signal frequency, amplitude, and noise tolerance. TI provides an ADC Performance Calculator tool to help engineers optimize the ADC's settings for their application. Additionally, the datasheet provides guidelines for selecting the optimal clock frequency, input range, and sampling rate.
The PADC12DL3200ACF has a maximum input voltage of 5.5V, which is the absolute maximum rating. However, the recommended input voltage range is 0V to 4.5V to ensure optimal performance and prevent damage to the device.
The PADC12DL3200ACF outputs 12-bit digital data, which can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. TI provides example code and interface guidelines in their documentation and software development kits (SDKs) to help engineers integrate the ADC with their chosen microcontroller or FPGA.
The PADC12DL3200ACF has a typical power consumption of 35mW at 3.3V and 20MSps. To reduce power consumption, engineers can use the ADC's power-down mode, reduce the clock frequency, or use the device's built-in low-power modes. Additionally, TI provides power-saving guidelines in their documentation and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PADC12DL3200ACF Overview

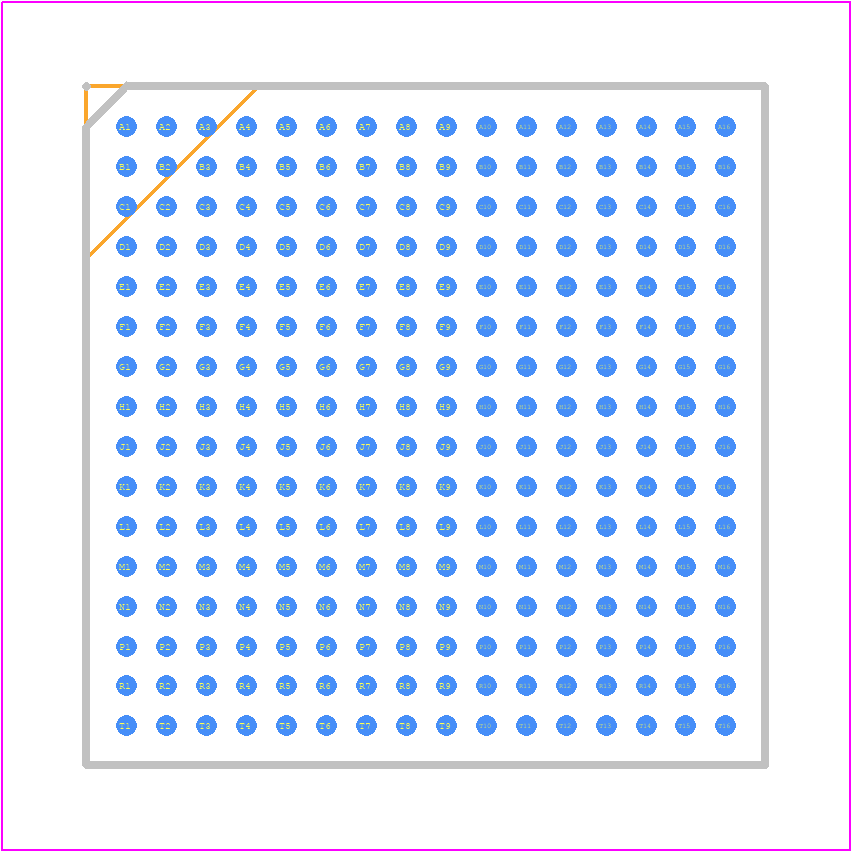

Use the download button to access the PADC12DL3200ACF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PADC1,
or try a keyword search, such as Analog to Digital Converters
