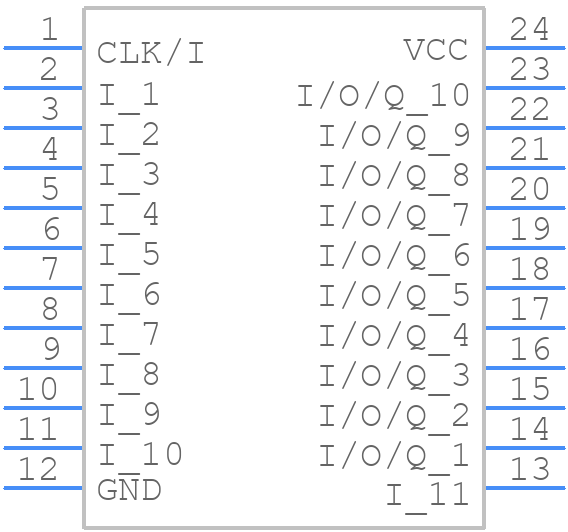

PAL22V10Z-25CJTL - Texas Instruments

PAL22V10Z-25CJTL Details

• Manufacturer Part Number:

  PAL22V10Z-25CJTL

• Brand Name:

  Texas Instruments

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  PAL WITH MACROCELLS; 10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  50 MHz

• In-System Programmable:

  NO

• JESD-30 Code:

  R-GDIP-T24

• JESD-609 Code:

  e0

• JTAG BST:

  NO

• Length:

  32.005 mm

• Number of Dedicated Inputs:

  11

• Number of I/O Lines:

  10

• Number of Inputs:

  22

• Number of Macro Cells:

  10

• Number of Outputs:

  10

• Number of Product Terms:

  132

• Number of Terminals:

  24

• Operating Temperature-Max:

  75 °C

• Organization:

  11 DEDICATED INPUTS, 10 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Programmable Logic Type:

  UV PLD

• Propagation Delay:

  25 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  5.25 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
