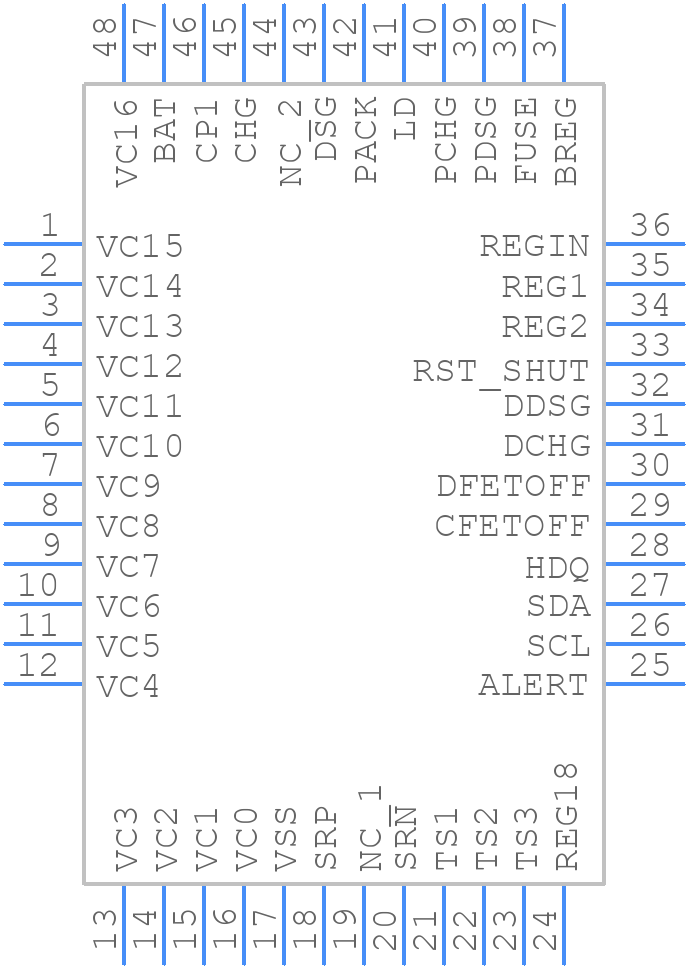

PBQ76952PFBT - Texas Instruments

PBQ76952PFBT Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to minimize thermal resistance. A thermal via array under the device can also help to dissipate heat.
• How do I ensure reliable operation at high temperatures?
  To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and provide adequate heat sinking. Additionally, consider using a thermal monitoring system to detect overheating.
• What is the maximum allowed voltage on the input pins?
  Although the datasheet specifies the recommended operating voltage range, it's essential to note that the absolute maximum rating for the input pins is 6.5V. Exceeding this voltage can cause permanent damage to the device.
• How do I handle ESD protection during handling and assembly?
  To prevent electrostatic discharge (ESD) damage, handle the device with ESD-protective equipment, such as wrist straps or mats. During assembly, use ESD-protected packaging and follow proper handling procedures to minimize the risk of ESD damage.
• What are the recommended soldering conditions for this device?
  Texas Instruments recommends using a soldering temperature of 260°C (peak) with a soldering time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
