PCM1800E/2K - Texas Instruments

Description: Audio A/D Converter ICs Sngl-End Analog Inp 20-Bit Stereo ADC

Download PCM1800E/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

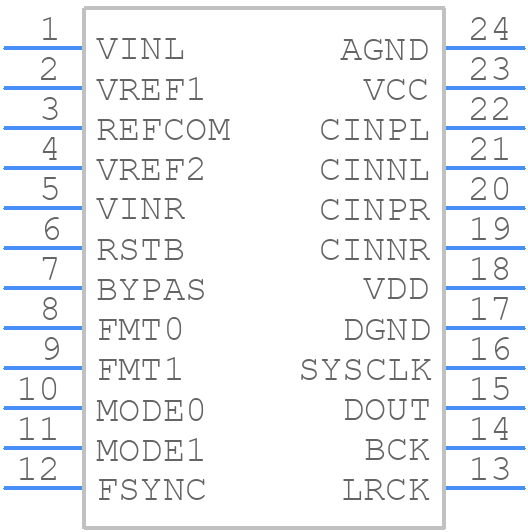

PCM1800E/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1800E/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G24)
click to zoom
3D Models
PCM1800E/2K - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G24)
click to zoom

PCM1800E/2K Details

  • Manufacturer Part Number:

    PCM1800E/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    2.828 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1800E/2K Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VREF, and then the analog input signals. This ensures proper device operation and prevents damage to the device.
  • To optimize the analog input stage, use a low-pass filter to remove high-frequency noise, and ensure the input signal is within the recommended range of 2.5Vpp. Also, use a high-impedance source and a low-capacitance cable to minimize signal degradation.
  • The recommended clock frequency for the PCM1800E/2K is between 256fs and 512fs, where fs is the sampling frequency. This ensures proper device operation and minimizes jitter.
  • The PCM1800E/2K outputs 24-bit data in MSB-first, two's complement format. Ensure that your receiving device can handle this format, and consider using a FIFO or buffer to handle the data stream.
  • To minimize noise and ensure proper operation, keep analog and digital signals separate, use a solid ground plane, and avoid running digital signals near the analog input stage. Also, use a low-inductance path for the power supply and decouple the power pins with capacitors.
