PCM1800E - Texas Instruments

Description: 95dB SNR Stereo ADC with Single-Ended Inputs

Download PCM1800E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

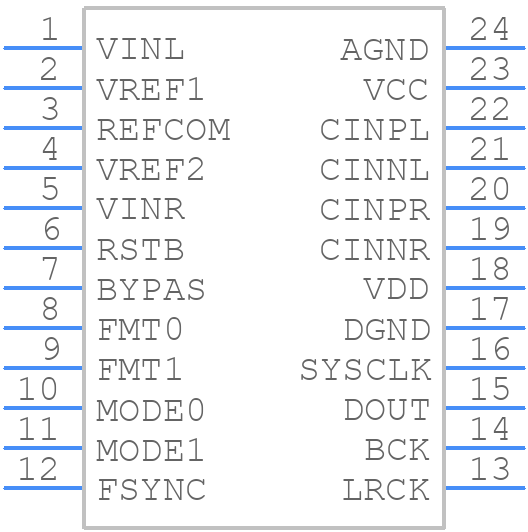

PCM1800E - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1800E - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G**)
click to zoom
3D Models
PCM1800E - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G**)
click to zoom

PCM1800E Details

  • Manufacturer Part Number:

    PCM1800E

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-08-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • Analog Input Voltage-Max:

    2.828 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.048 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM1800E Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures that the internal voltage regulators are powered up correctly.
  • The analog input filter should be designed to reject noise and interference above 20 kHz. A simple RC filter with a cutoff frequency around 10 kHz to 15 kHz is recommended. The filter should also be designed to minimize signal attenuation and distortion.
  • The recommended clock frequency for the PCM1800E is 256 times the sampling frequency. For example, for a sampling frequency of 44.1 kHz, the clock frequency should be 11.2896 MHz (256 x 44.1 kHz).
  • The PCM1800E outputs 24-bit data in MSB-first format. The data should be latched on the rising edge of the BCK (bit clock) signal. The data is output in a continuous stream, with the MSB of each sample output first, followed by the remaining 23 bits.
  • The PCM1800E is a high-speed, high-resolution ADC, and as such, it requires careful layout and routing to minimize noise and interference. The analog input traces should be kept short and away from digital traces. The power supply traces should be wide and well-decoupled. The clock traces should be short and matched in length to minimize skew.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

PCM1800E Overview

Use the download button to access the PCM1800E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
