The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper internal biasing and prevents damage to the device.
To optimize the analog input stage, use a low-pass filter to remove high-frequency noise, and ensure the input signal is within the recommended common-mode voltage range (VCM). Also, use a high-impedance source and a low-capacitance layout to minimize loading effects.
The maximum clock frequency for the PCM1804 is 256 fs (fs = sampling frequency). However, it's recommended to use a clock frequency that is at least 10 times the sampling frequency to ensure proper operation.
To minimize the impact of clock jitter, use a high-quality clock source with low jitter (< 100 ps). Additionally, use a clock buffer or a jitter attenuator to reduce clock jitter. It's also recommended to use a sampling frequency that is not a multiple of the clock frequency to minimize jitter-induced errors.
To minimize noise and ensure proper operation, use a multi-layer PCB with a solid ground plane, and separate analog and digital grounds. Keep analog and digital signals separate, and use shielding or guard rings to reduce noise coupling. Also, use short, direct traces for the analog input signals and the clock signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM1804S1IDBRQ1 Overview

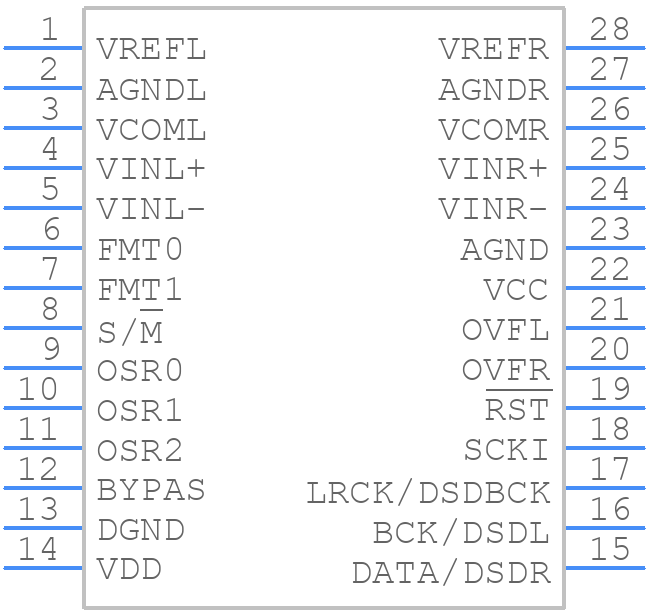

Use the download button to access the PCM1804S1IDBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM18,
or try a keyword search, such as Analog to Digital Converters
