PCM1863DBTR - Texas Instruments

Description: 110dB 2-Channel Software-Controlled Audio ADC With Universal Front End

Download PCM1863DBTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

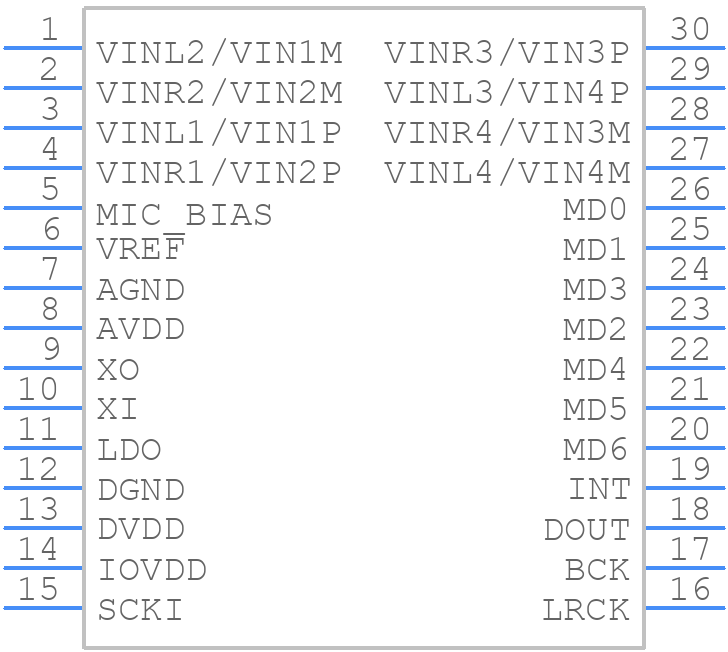

Symbol
PCM1863DBTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM1863DBTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A
click to zoom
3D Models
PCM1863DBTR - Texas Instruments - 3D model - Small Outline Packages - DBT0030A
click to zoom

PCM1863DBTR Details

  • Manufacturer Part Number:

    PCM1863DBTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    2

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2'S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCM1863DBTR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
  • To optimize the PCB layout, keep the analog and digital grounds separate, use a solid ground plane, and place the analog and digital components on opposite sides of the board. Also, keep the clock and data lines as short as possible and away from noise sources.
  • The PCM1863 supports clock frequencies up to 50 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • The PCM1863 can be configured for master or slave mode by setting the appropriate bits in the control register. In master mode, the PCM1863 generates the clock signal, while in slave mode, it receives the clock signal from an external source.
  • The recommended decoupling capacitor value is 0.1 μF to 1 μF, depending on the specific application and system requirements. The capacitor should be placed as close as possible to the power pins.
