PCM2900E/2K - Texas Instruments

Description: General Purpose Audio Codec 1ADC / 1DAC Ch 28-Pin SSOP T/R

Download PCM2900E/2K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

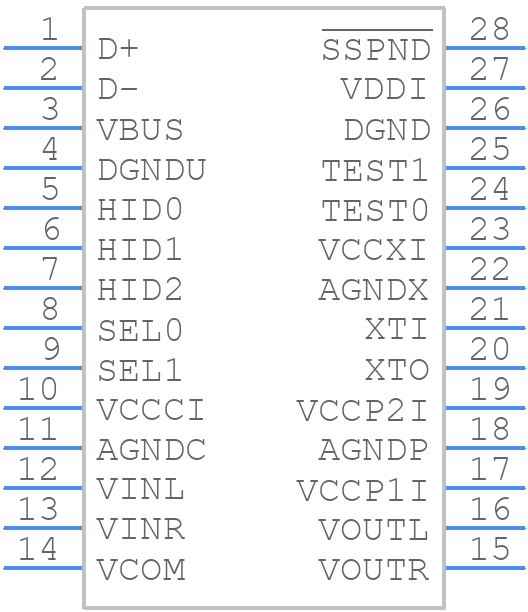

PCM2900E/2K - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
PCM2900E/2K - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB0028A
click to zoom
3D Models
PCM2900E/2K - Texas Instruments - 3D model - Small Outline Packages - DB0028A
click to zoom

PCM2900E/2K Details

  • Manufacturer Part Number:

    PCM2900E/2K

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    4

  • Additional Feature:

    IT ALSO REQUIRES 3.25V TO 3.5V SUPPLY

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.35 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

PCM2900E/2K Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog and digital inputs. This ensures proper device operation and prevents damage.
  • The analog input filter should be designed to reject noise and aliasing frequencies. A 3rd-order Butterworth filter with a cutoff frequency of around 10 kHz is recommended. The filter should also be impedance-matched to the analog input pins.
  • The maximum input signal amplitude is 2.5 Vrms, which corresponds to a peak-to-peak amplitude of 7.07 V. Exceeding this amplitude may result in distortion and clipping.
  • To configure the PCM2900E/2K for master clock mode, connect the MCLK pin to an external clock source, and set the M/S pin to logic high. The device will then generate the required clock signals for the ADC and DAC.
  • The recommended layout and routing for the PCM2900E/2K involves separating the analog and digital signal paths, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. Additionally, the device should be placed close to the analog input sources to reduce noise pickup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCM2900E/2K Overview

Use the download button to access the PCM2900E/2K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM29, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
