SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
PDRV8424PWPR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PDRV8424PWPR is a highly configurable device, and the configuration depends on the specific application. Texas Instruments provides a range of application notes and design guides that provide detailed configuration and design recommendations for various applications, such as motor control, audio amplification, and power conversion.
The PDRV8424PWPR has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and prevent thermal shutdown.
The PDRV8424PWPR has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it's still essential to implement external protection circuits, such as voltage regulators and current limiters, to ensure that the device is protected from excessive voltage and current conditions.
Texas Instruments recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a total capacitance of at least 10 μF. The capacitors should be placed as close as possible to the device's power pins to minimize inductance and ensure effective decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDRV8424PWPR Overview

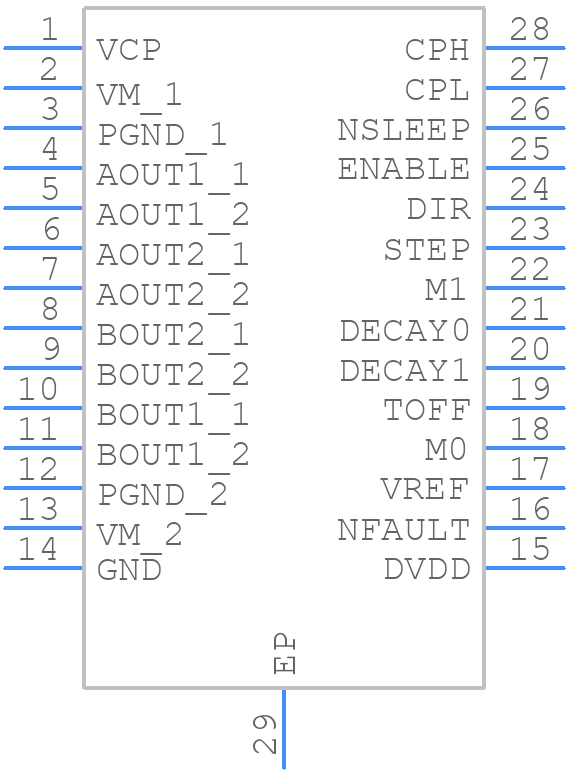

Use the download button to access the PDRV8424PWPR schematic symbol, PCB footprint, and 3D model.
