Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PDRV8889QPWPRQ1 is a highly configurable device, and the configuration depends on the specific motor type and application. Texas Instruments provides a Motor Driver Configuration Tool (MDCT) that helps engineers configure the device for their specific use case. The tool provides a graphical user interface to select motor type, set current limits, and configure other parameters.
The PDRV8889QPWPRQ1 is rated for operation in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to consult the datasheet and application notes for thermal management guidelines and derating factors.
Texas Instruments provides a troubleshooting guide in the application note SLVAUH8, which covers common issues and their possible causes. Engineers can also use the device's built-in diagnostic features, such as fault flags and current sense outputs, to identify and debug issues.
Yes, the PDRV8889QPWPRQ1 is designed to meet the requirements of various automotive and industrial safety standards, including ISO 26262, IEC 61508, and AEC-Q100. However, engineers should consult the device's safety documentation and certification reports to ensure compliance with their specific application's safety requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PDRV8889QPWPRQ1 Overview

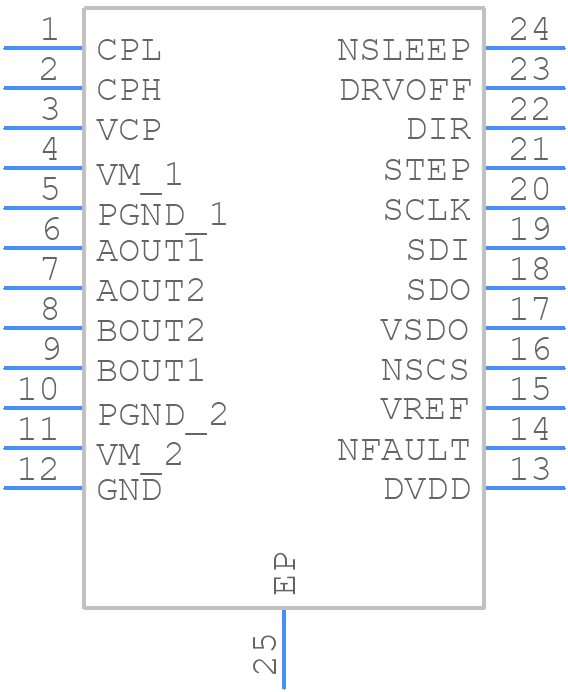

Use the download button to access the PDRV8889QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PDRV8,
or try a keyword search, such as Motion Control Electronics
