Texas Instruments provides a recommended PCB layout in the PGA205BUG4 evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The optimal gain setting depends on the specific application requirements. Engineers can use the PGA205BUG4's programmable gain feature to adjust the gain in 1dB steps from 0dB to 40dB. TI provides a gain setting calculator tool to help determine the optimal gain setting based on input signal amplitude and desired output signal level.
The PGA205BUG4 can handle input signal amplitudes up to 2.5Vpp differential or 1.25Vpp single-ended. However, the maximum input signal amplitude may be limited by the specific application requirements and the desired signal-to-noise ratio (SNR).
To ensure EMI compliance, engineers should follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. TI also provides EMI compliance guidelines and recommendations in the PGA205BUG4 datasheet and application notes.
The PGA205BUG4 has a typical power consumption of 12.5mA at 3.3V supply voltage. To optimize power consumption, engineers can use the device's power-down mode, which reduces power consumption to less than 1μA. Additionally, the PGA205BUG4's programmable gain feature can be used to optimize the gain setting for the specific application, which can also help reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA205BUG4 Overview

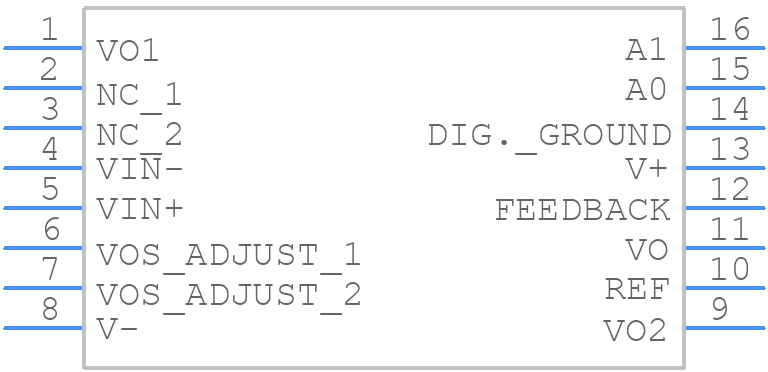

Use the download button to access the PGA205BUG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA20,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
