The recommended layout and placement for the PGA2311U/1K involves placing the device close to the analog signal source, using a ground plane to minimize noise, and keeping the input and output traces short and shielded. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane and to avoid running digital signals near the analog signals.
To optimize the gain setting, you need to consider the input signal amplitude, desired output amplitude, and the gain range of the PGA2311U/1K. You can use the gain equation provided in the datasheet to calculate the optimal gain setting. Additionally, you can use the PGA2311U/1K's built-in gain calibration feature to fine-tune the gain setting.
The recommended power supply decoupling for the PGA2311U/1K involves using a 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, placed as close as possible to the device's power pins. This helps to filter out noise and ensure stable operation.
To minimize noise and distortion, use a low-noise power supply, keep the input and output traces short and shielded, and use a ground plane to minimize electromagnetic interference (EMI). Additionally, use a low-pass filter at the output to remove high-frequency noise and distortion.
The maximum input signal amplitude that the PGA2311U/1K can handle is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and minimize distortion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA2311U/1K Overview

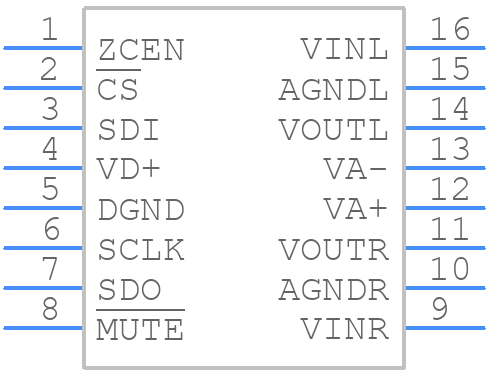

Use the download button to access the PGA2311U/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA23,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
