A good PCB layout for PGA308AIDGSR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
The gain setting of PGA308AIDGSR can be optimized by selecting the appropriate gain resistor values based on the input signal amplitude and desired output signal level. The gain can be calculated using the formula: Gain (dB) = 20 * log10 (Rf / Rg), where Rf is the feedback resistor and Rg is the gain resistor.
A recommended power supply decoupling scheme for PGA308AIDGSR involves using a combination of ceramic and electrolytic capacitors. A 10uF ceramic capacitor should be placed close to the device, and a 10uF electrolytic capacitor should be placed near the power supply. Additionally, a 0.1uF ceramic capacitor can be used to filter high-frequency noise.
To minimize noise and interference in a PGA308AIDGSR-based design, use a shielded enclosure, keep the input and output traces short and symmetrical, and use a solid ground plane. Additionally, use decoupling capacitors to filter power supply noise, and consider using a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
The maximum input signal amplitude that PGA308AIDGSR can handle is ±10V, but it's recommended to keep the input signal amplitude below ±5V to ensure optimal performance and prevent distortion.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PGA308AIDGSR Overview

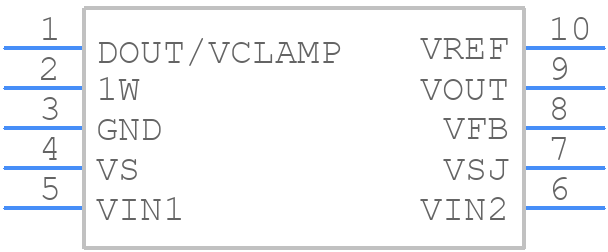

Use the download button to access the PGA308AIDGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PGA30,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
