The recommended PCB layout involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths. For thermal management, a heat sink or thermal pad is recommended to keep the junction temperature below 125°C.
To ensure reliable start-up and shutdown, it's essential to follow the recommended power-up and power-down sequencing, ensure a stable input voltage, and add a soft-start circuit to prevent inrush currents.
The OCP feature has a response time of around 1-2 μs and is designed to protect the device from catastrophic failures. However, it may not protect against slower overcurrent events or those caused by output short circuits. Additional external protection may be necessary for specific applications.
While the PMM8218TP is a high-performance device, it may not meet the specific requirements of high-reliability or automotive applications. Engineers should consult with Flex Ltd or a qualified representative to determine the device's suitability for such applications.
To troubleshoot issues, engineers should follow a systematic approach, checking the input voltage, output load, and PCB layout. They should also verify the device's operating conditions, such as temperature and input voltage, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PMM8218TP Overview

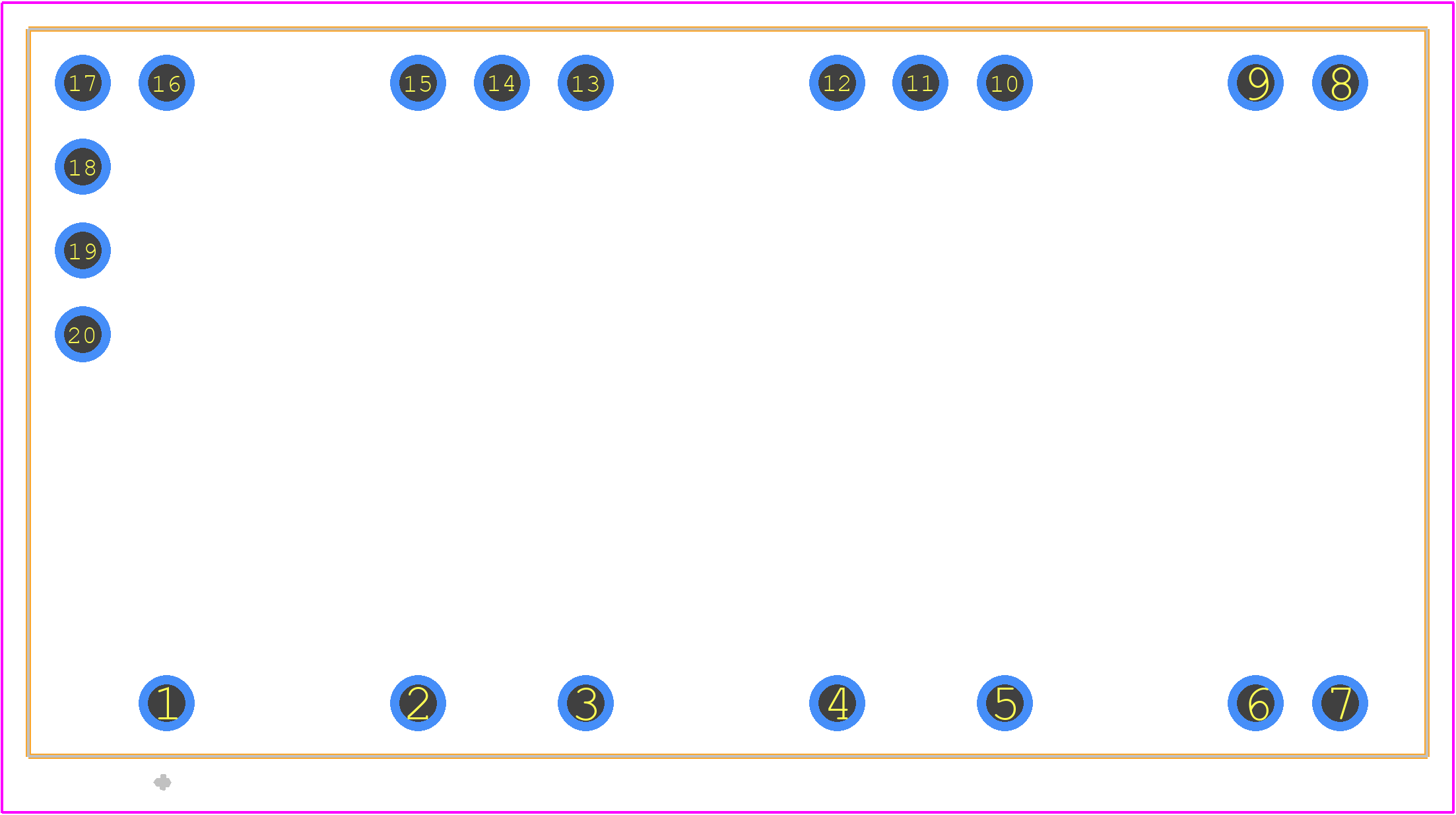

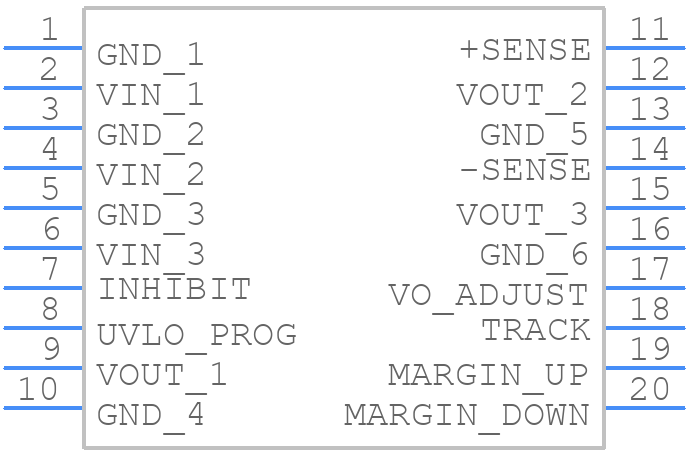

Use the download button to access the PMM8218TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PMM82,
or try a keyword search, such as Power Supply Modules
