Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output capacitors are placed close to the device.
The selection of input and output capacitors depends on the specific application requirements. Generally, use low-ESR capacitors with a voltage rating higher than the maximum input voltage. For the output capacitor, choose a capacitor with a capacitance value between 10uF to 22uF, and ensure it can handle the output current and voltage ripple.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's recommended to derate the device for reliable operation above 85°C. Consult the thermal derating chart in the datasheet to determine the maximum ambient temperature for your specific application.
To ensure EMC compliance, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding if necessary. Additionally, ensure that the device is properly decoupled, and the input and output filters are designed to meet the required EMC standards.
While the datasheet specifies an input voltage range of 2.7V to 5.5V, it's recommended to operate the device within the 3.3V to 5V range for optimal performance and efficiency. Operating outside this range may affect the device's performance, efficiency, or reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PUCC21710QDWQ1 Overview

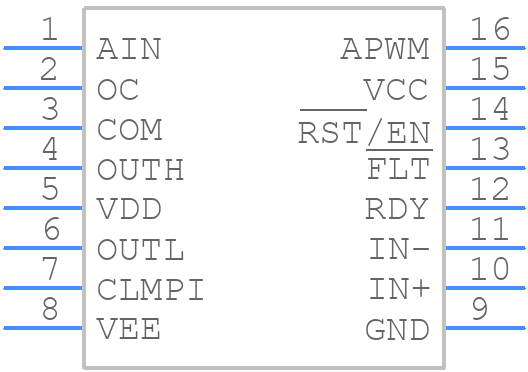

Use the download button to access the PUCC21710QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PUCC2,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
