UCC21710QDWRQ1 - Texas Instruments

Description: Gate Drivers Automotive ±10-A 5.7kV RMS single channel isolated gate driver for SiC/IGBT with overcurre 16-SOIC -40 to 125

Download UCC21710QDWRQ1 Model

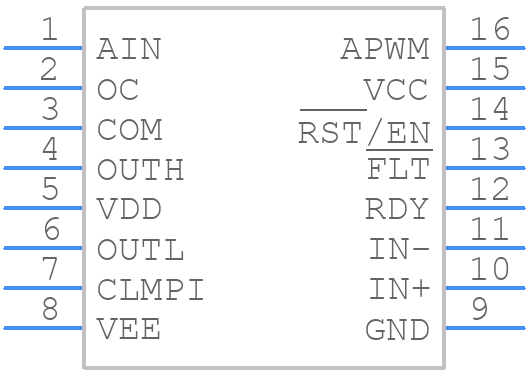

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21710QDWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
UCC21710QDWRQ1 - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

UCC21710QDWRQ1 Details

  • Manufacturer Part Number:

    UCC21710QDWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    10 A

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

UCC21710QDWRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21710QDWRQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the traces connected to the IC's pins. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure the UCC21710QDWRQ1 operates within its SOA, implement a soft-start circuit to limit the inrush current during startup, and use a voltage supervisor to monitor the input voltage and prevent the IC from operating outside its specified voltage range during shutdown.
  • When selecting input and output capacitors for the UCC21710QDWRQ1, consider the capacitor's equivalent series resistance (ESR), capacitance value, and voltage rating. Choose capacitors with low ESR to minimize energy losses and ensure stable operation. Ensure the capacitor's voltage rating exceeds the maximum input or output voltage.
  • To troubleshoot issues with the UCC21710QDWRQ1, use an oscilloscope to monitor the IC's pins and identify any unusual waveforms or oscillations. Check the PCB layout for any potential issues, such as poor grounding or inadequate decoupling. Consult the datasheet and application notes for guidance on troubleshooting common issues.
  • To manage the thermal performance of the UCC21710QDWRQ1, ensure good airflow around the IC, use a heat sink if necessary, and follow TI's recommended thermal design guidelines. Monitor the IC's junction temperature (TJ) and ensure it remains within the specified operating range.
