PUCC21750DW - Texas Instruments

Description: Single channel isolated gate driver for SiC/IGBT with advanced protection and high-CMTI

Download PUCC21750DW Model

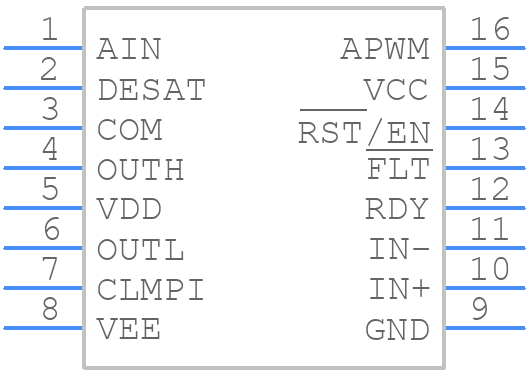

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PUCC21750DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
PUCC21750DW - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

PUCC21750DW Details

  • Manufacturer Part Number:

    PUCC21750DW

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • High Side Driver:

    NO

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    10 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    13 V

  • Supply Voltage1-Nom:

    20 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.13 µs

  • Turn-on Time:

    0.13 µs

  • Width:

    7.5 mm

PUCC21750DW Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing parasitic inductance. Additionally, ensure the PCB is designed to handle the high-frequency switching of the converter.
  • When selecting an inductor, consider the inductor's saturation current, DC resistance, and self-resonant frequency. The PUCC21750DW datasheet provides guidelines for inductor selection, but you may need to consult the inductor manufacturer's datasheet for specific information. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter.
  • The PUCC21750DW has an absolute maximum input voltage rating of 28V, but the recommended operating input voltage range is 4.5V to 18V. Exceeding the absolute maximum rating can damage the device.
  • To ensure the PUCC21750DW operates within its thermal limits, follow the thermal design guidelines in the datasheet, such as providing adequate heat sinking, using a thermal pad, and keeping the device away from heat sources. Monitor the device's junction temperature (TJ) and ensure it stays below the maximum rating of 150°C.
  • The EN (enable) pin is used to enable or disable the PUCC21750DW. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. You can use the EN pin to implement power sequencing, shutdown, or low-power modes in your design.
