REF1004C-1.2 - Texas Instruments

Description: Micropower Voltage Reference

Download REF1004C-1.2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

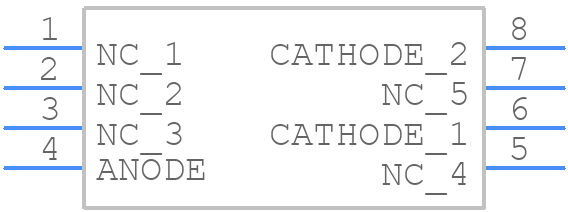

Symbol
REF1004C-1.2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
REF1004C-1.2 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom
3D Models
REF1004C-1.2 - Texas Instruments - 3D model - Small Outline Packages - 8-Pin SOIC-ren5
click to zoom

REF1004C-1.2 Details

  • Manufacturer Part Number:

    REF1004C-1.2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    1.239 V

  • Output Voltage-Min:

    1.231 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.5%

  • Width:

    3.9 mm

REF1004C-1.2 Frequently Asked Questions (FAQs)

  • The recommended input voltage range for the REF1004C-1.2 is 4.5V to 40V. Operating the device outside of this range may affect its performance and accuracy.
  • To ensure stability and accuracy over temperature, it's essential to decouple the input voltage with a capacitor (e.g., 10uF) and use a low-ESR capacitor (e.g., 10uF) on the output. Additionally, keep the device away from high-current carrying traces and ensure good thermal dissipation.
  • The output impedance of the REF1004C-1.2 is typically around 0.2 ohms. This low output impedance ensures that the device can drive capacitive loads and maintain its accuracy. However, it's essential to consider the output impedance when designing your circuit to ensure stability and prevent oscillations.
  • Yes, the REF1004C-1.2 is suitable for use as a reference voltage for analog-to-digital converters (ADCs) or digital-to-analog converters (DACs). Its low noise and high accuracy make it an ideal choice for precision applications.
  • To minimize noise and ensure accurate performance, follow good PCB layout practices: keep the REF1004C-1.2 away from noisy signals, use a solid ground plane, and minimize trace lengths and widths. Additionally, use a quiet input voltage and decouple the input with a capacitor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REF1004C-1.2 Overview

Use the download button to access the REF1004C-1.2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF10, or try a keyword search, such as Voltage References

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
