Texas Instruments recommends a star-ground configuration, with the REF3212AIDBVTG4 placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is supplying. The device should be surrounded by a ground plane, and the input and output traces should be kept short and away from noise sources.
To ensure stability, the REF3212AIDBVTG4 requires a minimum capacitance of 10nF between the output pin and ground. Additionally, the device should be decoupled from the power supply with a 10uF capacitor, and the input voltage should be filtered with a 1uF capacitor.
The thermal resistance of the REF3212AIDBVTG4 is 34.4°C/W. This means that the device can dissipate up to 500mW of power without exceeding its maximum operating temperature. Engineers should ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
Yes, the REF3212AIDBVTG4 can be used in a system with multiple voltage rails. However, the device's input voltage should be within the recommended range of 4.5V to 18V, and the output voltage should be decoupled from the input voltage with a capacitor to prevent noise coupling.
During power-up, the REF3212AIDBVTG4 has a soft-start feature that prevents output voltage overshoot. During power-down, the device's output voltage decays slowly to prevent voltage spikes. Engineers should ensure that the power-up and power-down sequences are slow enough to prevent voltage transients that could affect system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF3212AIDBVTG4 Overview

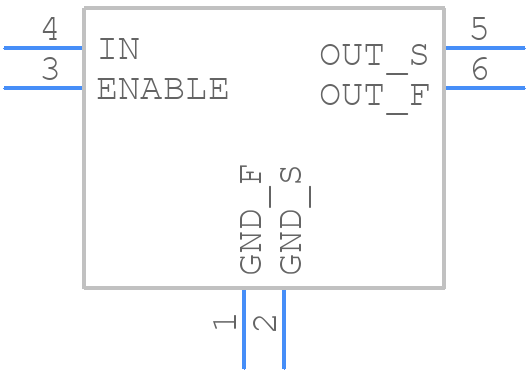

Use the download button to access the REF3212AIDBVTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF32,
or try a keyword search, such as Voltage References
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
