Texas Instruments provides a recommended PCB layout in the REF54250CDR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to minimize noise, ensure stability, and achieve the specified performance.
The REF54250CDR has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. A thermal via or a copper pour can be used to connect the thermal pad to the thermal plane. Additionally, ensure good airflow around the device and consider using a heat sink if the device is expected to operate in high-temperature environments.
The recommended input capacitor value for the REF54250CDR is 10uF to 22uF, with a voltage rating of at least 6.3V. A larger capacitor value can help to improve the power supply rejection ratio (PSRR) and reduce noise, but may increase the startup time of the device.
The REF54250CDR is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. Ensure that the device is operated within its specified temperature range, and consider using thermal management techniques to keep the device temperature below 125°C.
The REF54250CDR requires a bias voltage of 4.5V to 5.5V, and the output voltage can be adjusted using external resistors. Ensure that the bias voltage is within the specified range, and follow the datasheet guidelines for configuring the output voltage and other parameters for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF54250CDR Overview

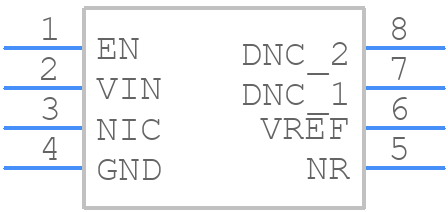

Use the download button to access the REF54250CDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF54,
or try a keyword search, such as Voltage References
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
