REF54500CDR - Texas Instruments

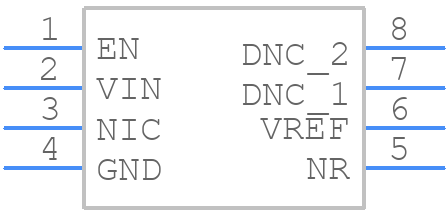

REF54500CDR Details

• Manufacturer Part Number:

  REF54500CDR

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-8

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  THREE TERMINAL VOLTAGE REFERENCE

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  2.7 V

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  4.905 mm

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.01 A

• Output Voltage-Max:

  5.001 V

• Output Voltage-Min:

  4.999 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.75 mm

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  5.4 V

• Supply Voltage-Nom (Vsup):

  5.4 V

• Surface Mount:

  YES

• Temp Coef of Voltage-Max:

  1 ppm/°C

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trim/Adjustable Output:

  NO

• Voltage Tolerance-Max:

  0.02%

• Width:

  3.895 mm
