REF6233IDGKT - Texas Instruments

Description: TEXAS INSTRUMENTS - REF6233IDGKT - VOLTAGE REFERENCE, SERIES, 3.3V, VSSOP-8

Download REF6233IDGKT Model

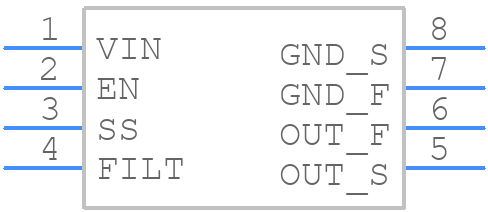

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
REF6233IDGKT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP (DGK)
click to zoom
3D Models
REF6233IDGKT - Texas Instruments  - 3D model - Small Outline Packages - VSSOP (DGK)
click to zoom

REF6233IDGKT Details

  • Manufacturer Part Number:

    REF6233IDGKT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-09-02

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.55 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.004 A

  • Output Voltage-Max:

    3.30165 V

  • Output Voltage-Min:

    3.29835 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    1.1 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.55 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    3 mm

REF6233IDGKT Frequently Asked Questions (FAQs)

  • The REF6233IDGKT is a high-precision voltage reference, and its performance can be affected by the PCB layout and placement. It is recommended to place the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is supplying, and to use a solid ground plane to minimize noise. Additionally, it is recommended to use a low-impedance power supply and to decouple the input and output pins with capacitors to reduce noise and oscillations.
  • To ensure the REF6233IDGKT is stable and accurate over temperature, it is recommended to use a stable and low-noise power supply, and to decouple the input and output pins with capacitors. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C), and the PCB should be designed to minimize thermal gradients. It is also recommended to use a thermally conductive material for the PCB and to avoid placing heat sources near the device.
  • The recommended input voltage range for the REF6233IDGKT is 4.5V to 18V. Operating the device outside of this range may affect its performance and accuracy. It is recommended to use a voltage regulator or a low-dropout regulator (LDO) to ensure a stable and regulated input voltage.
  • The output voltage tolerance of the REF6233IDGKT can be calculated using the formula: Output Voltage Tolerance = (Output Voltage Nominal x Temperature Coefficient) + (Output Voltage Nominal x Initial Accuracy). The temperature coefficient and initial accuracy values can be found in the datasheet. For example, for the REF6233IDGKT, the output voltage nominal is 2.5V, the temperature coefficient is 2ppm/°C, and the initial accuracy is ±0.1%. Therefore, the output voltage tolerance would be: Output Voltage Tolerance = (2.5V x 2ppm/°C) + (2.5V x ±0.1%) = ±1.25mV + ±2.5mV = ±3.75mV.
  • Yes, the REF6233IDGKT is suitable for use as a reference voltage for an ADC or DAC. Its high accuracy, low noise, and low temperature coefficient make it an ideal choice for precision analog-to-digital and digital-to-analog conversions. However, it is recommended to ensure that the REF6233IDGKT is properly decoupled and filtered to minimize noise and oscillations, and to follow the recommended layout and placement guidelines to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

REF6233IDGKT Overview

Use the download button to access the REF6233IDGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF62, or try a keyword search, such as Voltage References
