Texas Instruments provides a recommended PCB layout in the REF7025QDGKR datasheet, which includes guidelines for component placement, trace routing, and thermal management. It is essential to follow these guidelines to minimize noise, ensure stability, and achieve the specified performance.
The REF7025QDGKR has a relatively high output noise of 100 μVpp (typical) at 0.1 Hz to 10 Hz. To minimize the impact of this noise, it is recommended to use a low-pass filter or a noise-reducing capacitor at the output. Additionally, ensuring a stable power supply and proper PCB layout can also help reduce noise.
The REF7025QDGKR is specified to operate from -40°C to 125°C (junction temperature). However, the device's performance and accuracy may degrade at higher temperatures. It is essential to consider the thermal management and ensure that the device operates within its specified temperature range to maintain its performance and reliability.
The REF7025QDGKR requires a stable power supply voltage between 2.7 V and 5.5 V. It is essential to ensure that the power supply is well-regulated and free from noise. Additionally, the device requires a bias current of 1.5 mA (typical) to operate correctly. A suitable bias resistor can be used to set the bias current.
The recommended output capacitor value for the REF7025QDGKR is 10 μF to 22 μF. This capacitor helps to filter out high-frequency noise and ensure stability. However, the optimal capacitor value may vary depending on the specific application and PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF7025QDGKR Overview

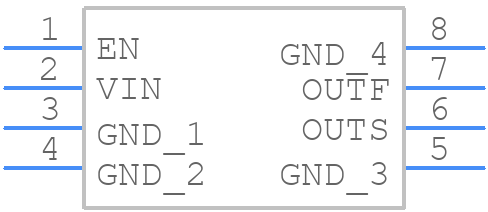

Use the download button to access the REF7025QDGKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF70,
or try a keyword search, such as Voltage References
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
