Texas Instruments recommends a star-ground connection, with the REF7040QFKHT placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC), and using a low-impedance power supply. Additionally, keep the device away from high-current switching nodes and use a solid ground plane to reduce noise.
Use a low-ESR capacitor (e.g., 10 μF) connected between the VCC and GND pins, and a 0.1 μF capacitor connected between the VCC and BYPASS pins. This helps to filter out noise and ensure stable operation. Additionally, use a high-quality power supply with low ripple and noise.
The typical start-up time for the REF7040QFKHT is around 10 ms. This means that the device requires a short settling time before the output voltage stabilizes. Engineers should ensure that their system design takes this start-up time into account, especially when using the REF7040QFKHT as a reference voltage for ADCs or DACs.
During power-down or brownout conditions, the REF7040QFKHT's output voltage will decay to zero. When power is restored, the device will restart and output a stable voltage after the typical start-up time. Engineers should ensure that their system design can handle this behavior and provide adequate power supply filtering to prevent unwanted resets or errors.
The recommended operating temperature range for the REF7040QFKHT is -40°C to 125°C. Temperature affects the device's performance, with a typical temperature coefficient of 10 ppm/°C. Engineers should ensure that their system design takes into account the temperature range and its potential impact on the REF7040QFKHT's accuracy and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
REF7040QFKHT Overview

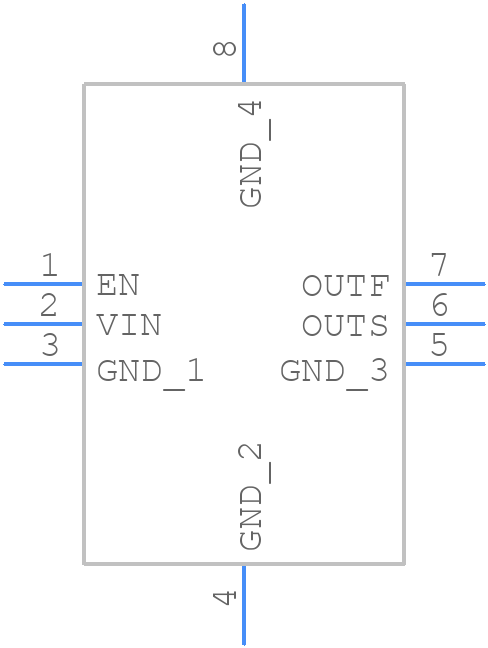

Use the download button to access the REF7040QFKHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like REF70,
or try a keyword search, such as Voltage References
