RF430CL331HIRGTR - Texas Instruments

Description: RFID Transponders Dynamic NFC Interface Transponder for Large File Transfer 16-VQFN -40 to 85

Download RF430CL331HIRGTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

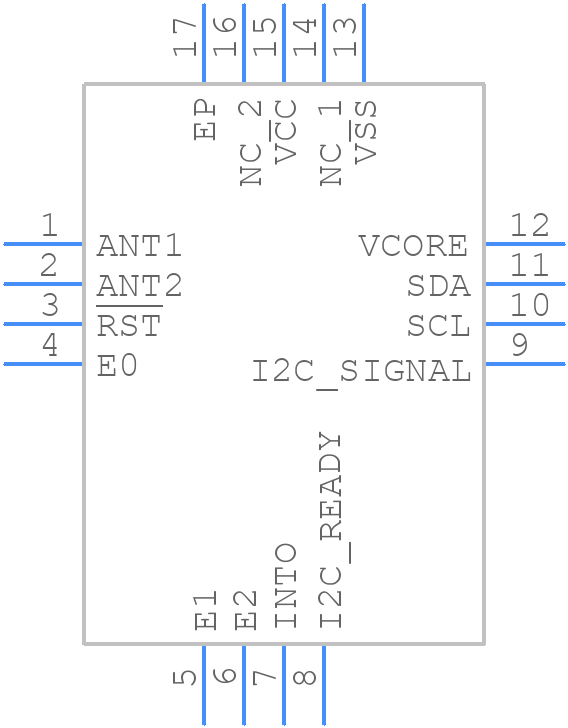

RF430CL331HIRGTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
RF430CL331HIRGTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height=1
click to zoom
3D Models
RF430CL331HIRGTR - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height=1
click to zoom

RF430CL331HIRGTR Details

  • Manufacturer Part Number:

    RF430CL331HIRGTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8523.59.00.00

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    3.0-3.6 SUPPLY AVAILABLE WHEN NO RF FIELD

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Memory IC Type:

    NFC/RFID TAGS AND TRANSPONDERS

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

RF430CL331HIRGTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAA701, which includes guidelines for component placement, trace routing, and grounding to minimize electromagnetic interference (EMI) and ensure optimal performance.
  • The choice of antenna depends on the operating frequency, environment, and design constraints. Texas Instruments recommends using a 1/4 wavelength monopole antenna or a chip antenna, and provides guidelines for antenna selection and design in the application note SLAA702.
  • The RF430CL331HIRGTR is rated for operation from -40°C to 85°C, but the actual operating temperature range may be limited by the specific application and environmental conditions. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
  • Antenna tuning is critical for optimal performance. Texas Instruments recommends using a network analyzer to measure the antenna's impedance and adjust the tuning components accordingly. The application note SLAA703 provides guidelines for antenna tuning and impedance matching.
  • Proper power supply decoupling and filtering are essential to minimize noise and ensure reliable operation. Texas Instruments recommends using a combination of ceramic capacitors and ferrite beads to filter the power supply lines, as described in the application note SLAA704.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RF430CL331HIRGTR Overview

Use the download button to access the RF430CL331HIRGTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RF430, or try a keyword search, such as Other Memory ICs
