SA03-11EWA - Kingbright

Description: LED Displays & Accessories HI EFF RED DIFFUSED 1 DIGIT

Download SA03-11EWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

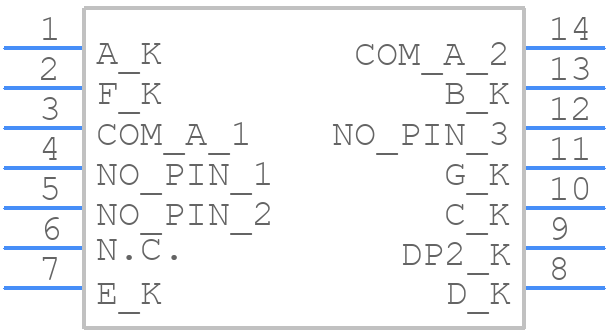

SA03-11EWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

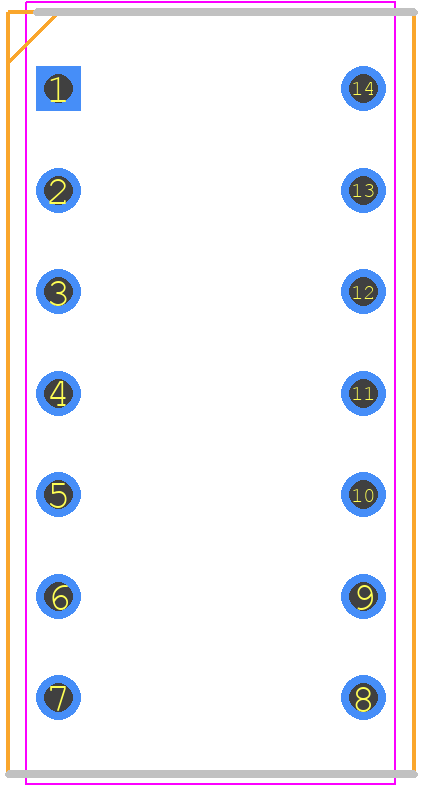

SA03-11EWA - Kingbright PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SA03-11EWA
click to zoom
3D Models
SA03-11EWA - Kingbright - 3D model - Dual-In-Line Packages - SA03-11EWA
click to zoom

SA03-11EWA Details

  • Manufacturer Part Number:

    SA03-11EWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-14

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    HIGH EFFICIENCY RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    7.62 mm

  • Forward Current-Max:

    0.03 A

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    625 nm

SA03-11EWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SA03-11EWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • While SA03-11EWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from environmental factors such as moisture, UV, and extreme temperatures.
  • The maximum forward current for SA03-11EWA is 30mA. Exceeding this current may reduce the LED's lifespan or cause damage.
  • Yes, SA03-11EWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The typical viewing angle for SA03-11EWA is 120°, which means the LED's brightness and color appearance remain consistent within this angle.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA03-11EWA Overview

Use the download button to access the SA03-11EWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA03-, or try a keyword search, such as LED Displays

Parts related to SA03-11EWA
