A good PCB layout for the SA03 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, add a 10-22 ohm resistor in series with the output to prevent oscillations. You can also add a 10-100nF capacitor in parallel with the output to improve stability.
The maximum power dissipation of the SA03 is dependent on the package type and the ambient temperature. For the SOIC-8 package, the maximum power dissipation is approximately 1.4W at 25°C. For the PDIP-8 package, it's approximately 1.7W at 25°C.
Yes, the SA03 can be used as a unity gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance to prevent signal attenuation. Additionally, you may need to add a small capacitor in parallel with the output to improve stability.
To protect the SA03 from overvoltage and ESD damage, use a voltage regulator to regulate the supply voltage to the recommended range. Add ESD protection diodes at the input and output pins, and consider using a TVS (Transient Voltage Suppressor) diode for additional protection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SA03 Overview

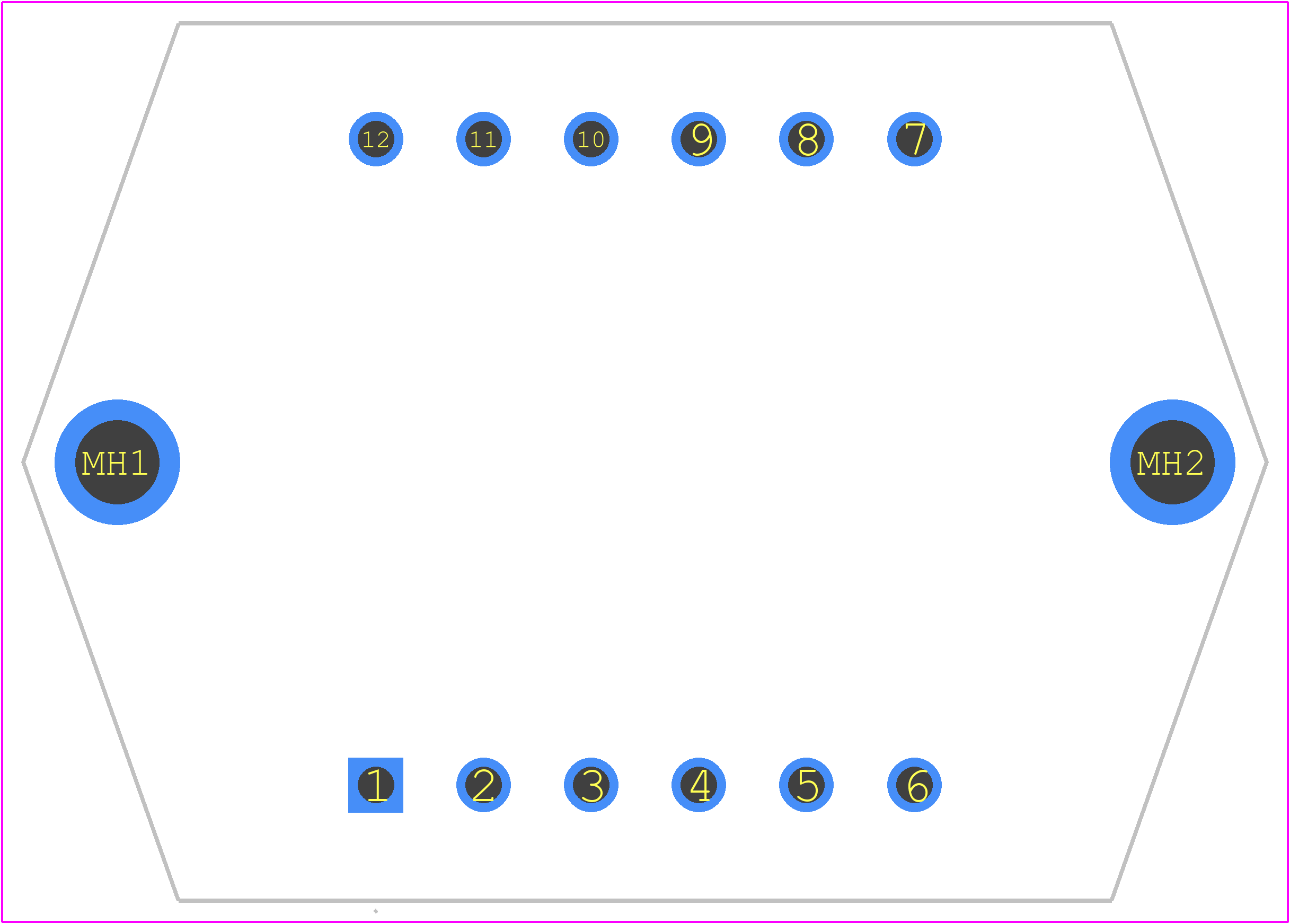

Use the download button to access the SA03 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Motion Control Electronics
