SA160DP - Apex Microtechnology

Description: 10A H-Bridge Motor Driver IC, Voltage supply operation - 80V, High output current - 20A PEAK (SA160DPA), RDS (on), both MOSFETs - 140mW typical.

Download SA160DP Model

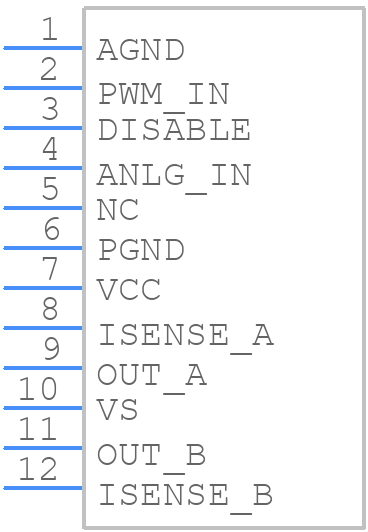

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

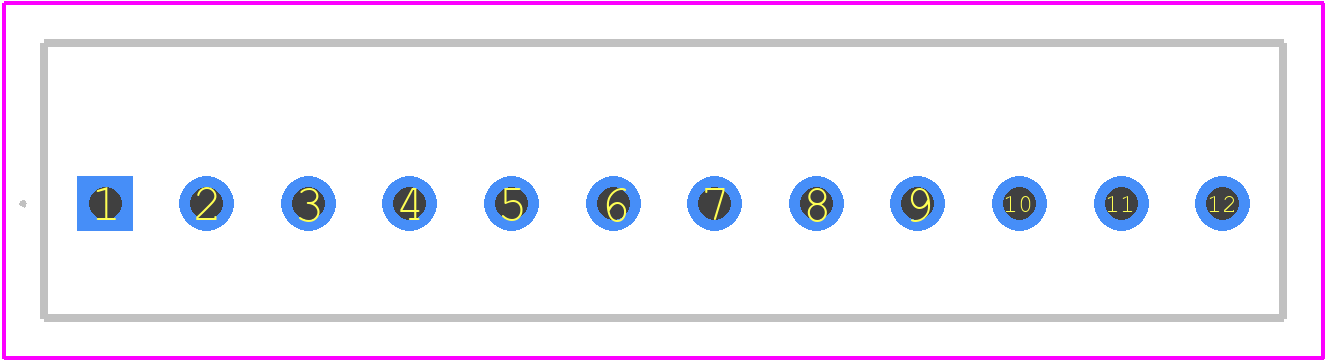

SA160DP - Apex Microtechnology PCB footprint - Other - Other - SA160DP
click to zoom
3D Models
SA160DP - Apex Microtechnology  - 3D model - Other - SA160DP
click to zoom

SA160DP Details

  • Manufacturer Part Number:

    SA160DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

SA160DP Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • To ensure reliable operation at high temperatures, Apex recommends derating the output current, using a heat sink, and ensuring good airflow around the device. Additionally, the device should be operated within the recommended junction temperature range.
  • Apex recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitors should be placed as close to the device as possible to minimize parasitic inductance.
  • Apex recommends using overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device. The OVP circuit should be designed to trigger at a voltage above the maximum recommended input voltage, and the OCP circuit should be designed to limit the output current to the recommended maximum value.
  • Apex recommends a slow startup sequence to prevent inrush currents and ensure reliable operation. The input voltage should be ramped up slowly, and the enable pin should be brought high after the input voltage has reached the recommended minimum value.
