Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
To prevent overheating, ensure proper heat sinking, and keep the junction temperature (Tj) below 150°C. Monitor the device's temperature using the thermal sense pin, and implement thermal shutdown or current limiting if necessary.
Apex Microtechnology recommends using a pi-filter (L-C-L) or a common-mode choke at the input, and a ferrite bead or a RC filter at the output to reduce EMI and ensure compliance with regulatory standards.
Consult Apex Microtechnology's application notes and technical support for customized guidance on optimizing the SA160EE for specific applications. They can provide recommendations on component selection, PCB layout, and device configuration.
Common failure modes include overheating, overvoltage, and overcurrent. Mitigate these by implementing proper thermal management, voltage regulation, and current limiting. Also, ensure the device is operated within its recommended specifications and follow proper handling and storage procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SA160EE Overview

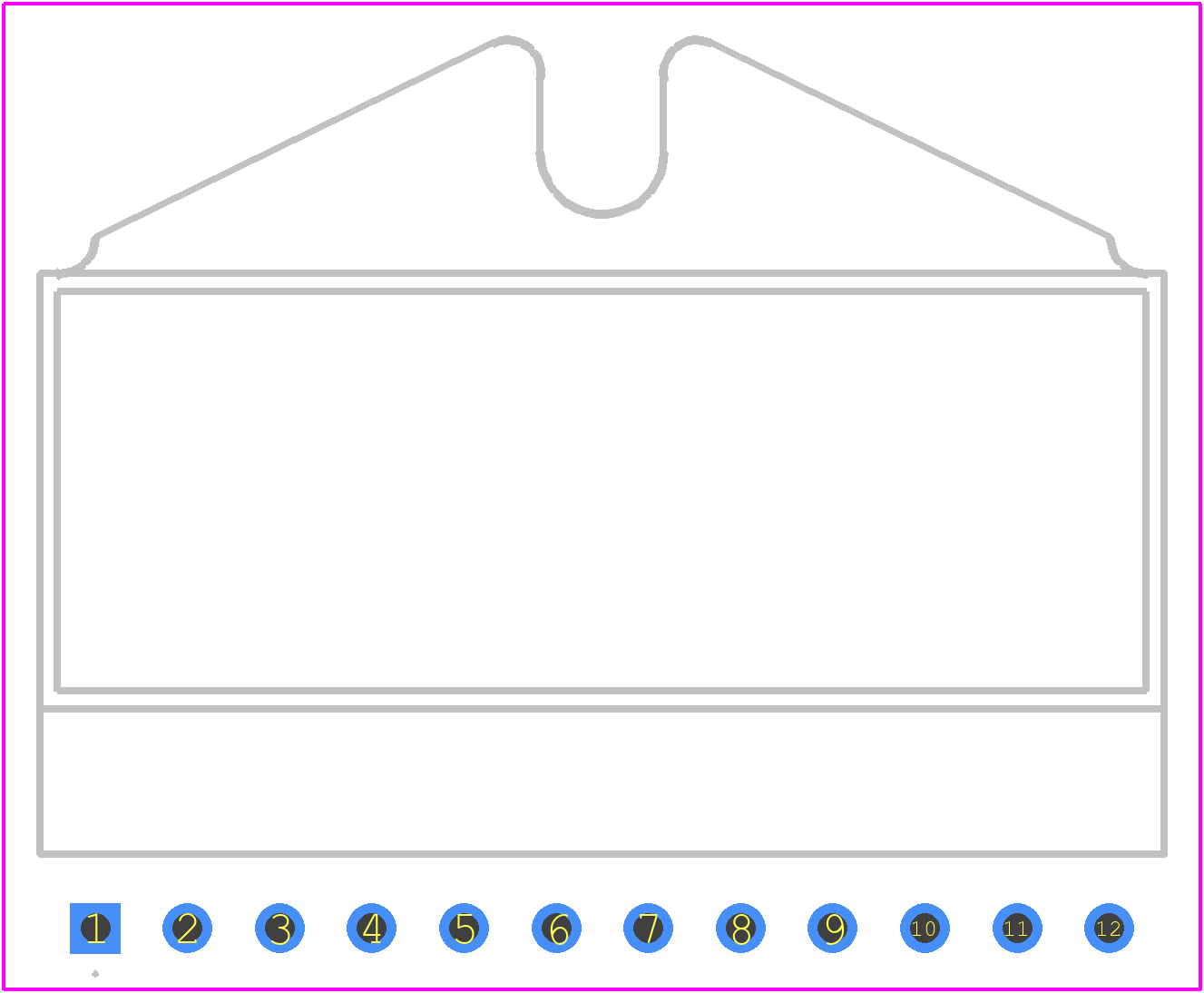

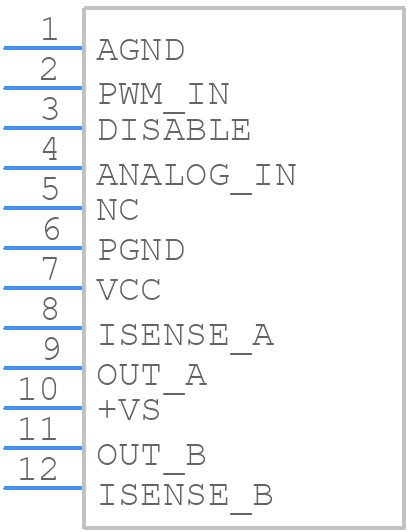

Use the download button to access the SA160EE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA160,
or try a keyword search, such as Motion Control Electronics
