Description:The SA310 is a fully integrated three-phase driver designed primarily to drive Brushless DC (BLDC) and Permanent Magnet Synchronous (PMSM) motors or DC/AC converters. The module uses Silicon Carbide MOSFET technology to improve efficiency over other devices in its class. Three independent half-bridges provide up to 80A peak output current under direct microcontroller or DSC control. SA310 is built on a thermally conductive, but electrically isolated substrate to provide the most versatility and ease in heat
Apex Microtechnology recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad on the bottom of the device should be connected to a heat sink or a thermal management system.
To ensure reliable operation over the full temperature range, Apex recommends following proper PCB design and layout guidelines, using a suitable thermal management system, and ensuring that the device is operated within its specified voltage and current ratings. Additionally, the device should be stored and handled in accordance with Apex's recommended storage and handling procedures.
Apex recommends following the IPC J-STD-020D standard for soldering and rework procedures. The device should be soldered using a soldering iron with a temperature of 250°C to 260°C, and the soldering time should not exceed 3 seconds. For rework, Apex recommends using a hot air rework station with a temperature of 220°C to 240°C and a airflow rate of 10-20 L/min.
To troubleshoot common issues with the SA310KR, Apex recommends checking the input voltage and current, ensuring proper PCB layout and thermal management, and verifying that the device is operated within its specified ratings. Additionally, Apex provides a troubleshooting guide in the application note AN-115, which provides detailed steps for identifying and resolving common issues.
The SA310KR is RoHS and REACH compliant, and meets the requirements of the European Union's Directive 2011/65/EU (RoHS) and Regulation (EC) No 1907/2006 (REACH). Apex also provides information on the device's environmental performance, including its carbon footprint and recyclability, in the Environmental Declaration document.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SA310KR Overview

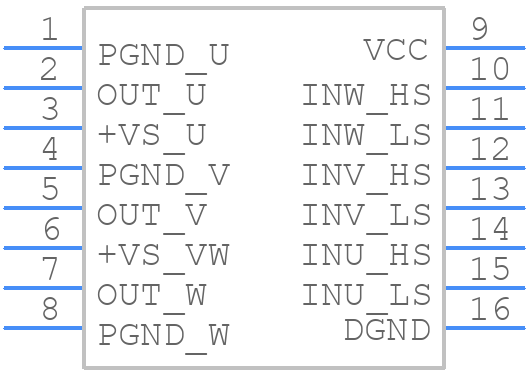

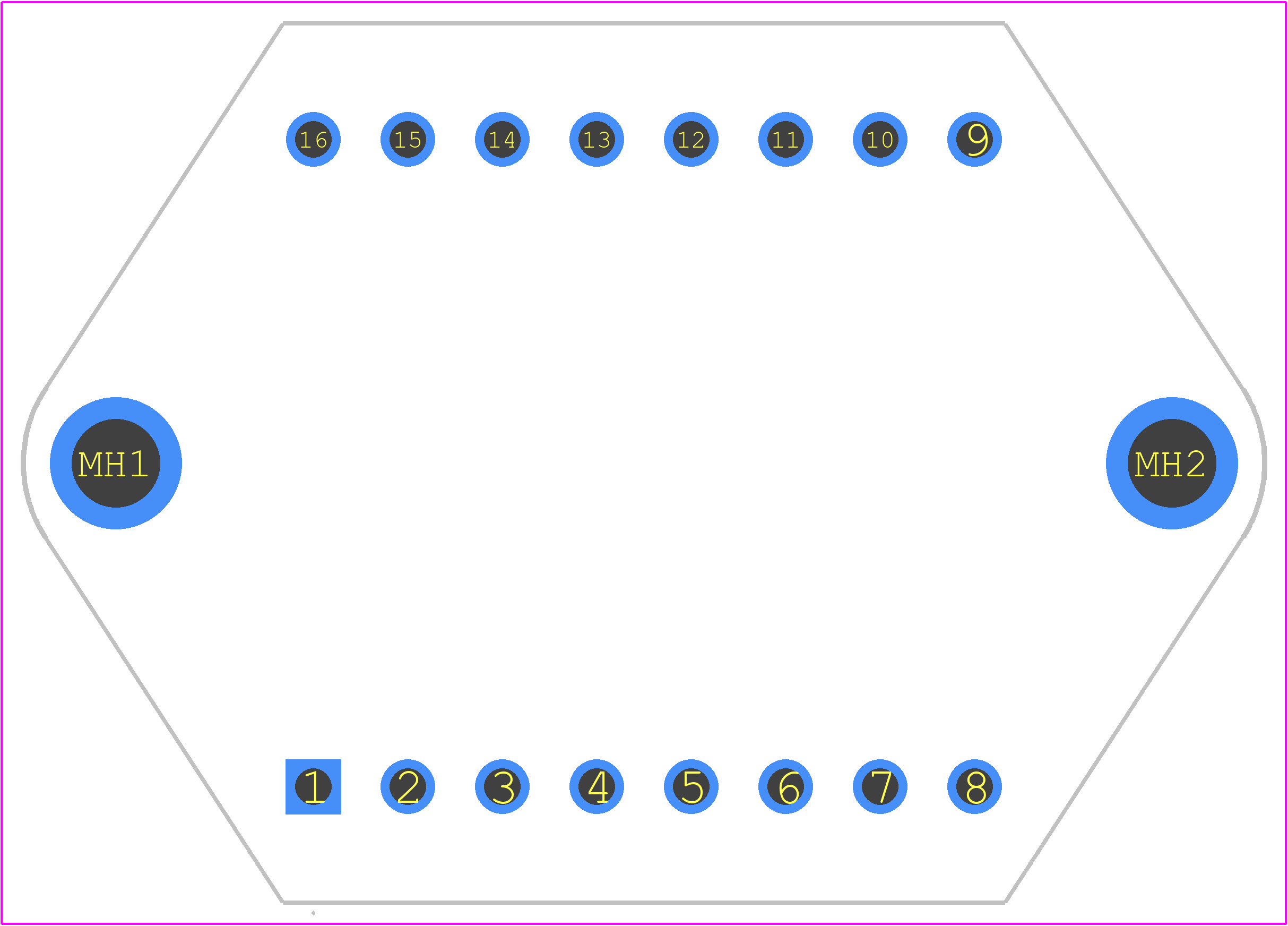

Use the download button to access the SA310KR schematic symbol, PCB footprint, and 3D model.
